लेजर अंकन प्रणाली

3DMICROMAC Typ: microCUT

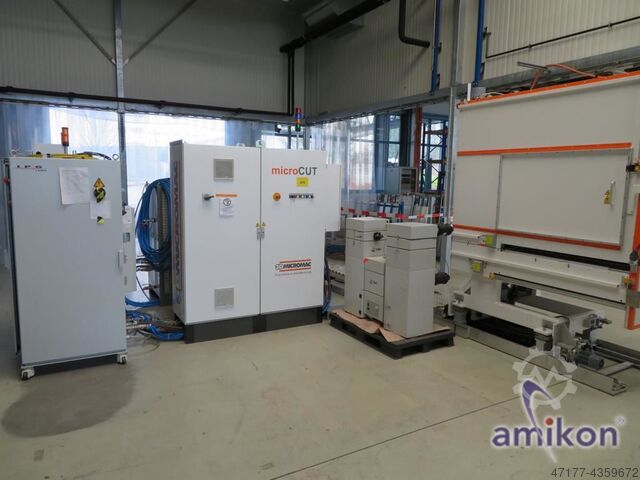

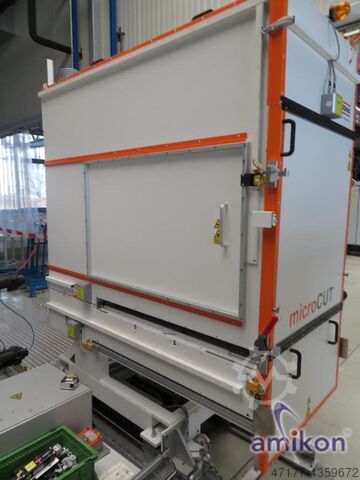

Here we offer you a 3DMICROMAC laser marking system
microCUT

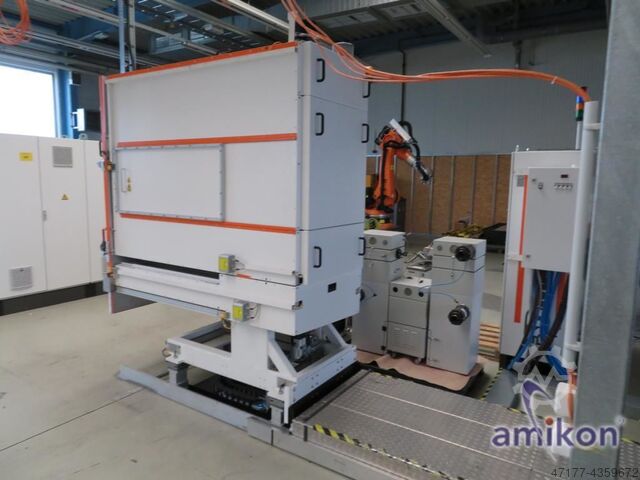

Enclosure
Laser source IPG
Raylaighs-3 axis scan system
Power sensor 1
Power sensor 2
Camera system for positioning
Camera system for quality inspection
Cooler
Suction
Control cabinet with IPCs
Distributor Cooling media
Machine dimensions:
Machine weight: 2 tones
width 922 mm, depth 4653 mm, height 2925 mm
Components:

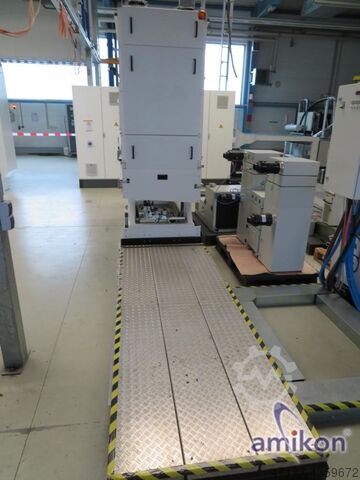

Suction: height 2869 mm, width 760 mm, depth 1577 mm

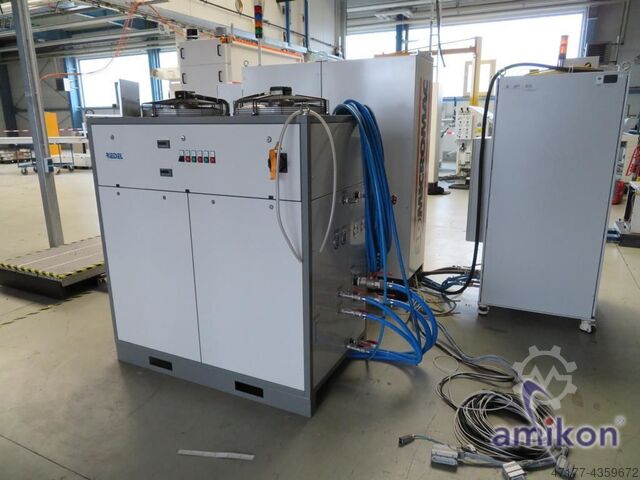

cooler: height 1697 mm, width 1440 mm, depth 860 mm
Weight (without filling) 500kg

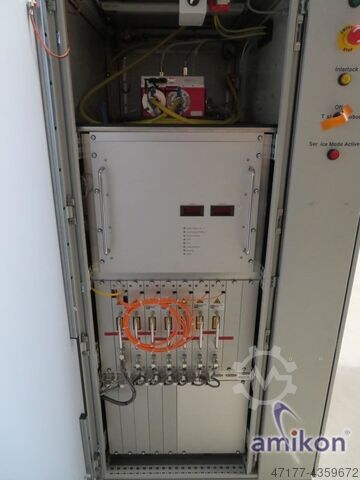

Laser rack: height 1786 mm, width 856 mm, depth 806 mm
Weight 500kg
Switch cabinet: height 2001 mm, width 1616.05 mm, depth 605 mm
Machine connections:
Electrical: mains voltage 3*400 VAC/N/PE
Mains power consumption 74A
Frequency 50/60Hz
Power consumption 51,3kW
Control voltage 24/5VDC
Main fuse NH 100A gG
Mudule:
Laser source: mains voltage 400 VAC
Frequency 50/60Hz, power 16.7 kW, current consumption 59A
Cooler: mains voltage 400V, frequency 50/60Hz, current consumption 40A
Machine: Consumables
Working pressure 6-10 bar
Temperature 10-50°C
Quality ISO 8573-1
Solid state: Class 1
Oil. Class 1
Water: Class 4
Residual oil content ᐸ 10µg/m³
Water content ᐸ 6 g/m³
Pressure dew point 3 °C
Consumption ᐸ 120 l/min
Cooling water cooling unit modules:
Temperature cooling water outlet 21°C
Temperature cooling water return 26°C
Setpoint tolerance 1K
Cooling water flow 69l/min
Free pump pressure 1.5 bar
DI water cooling unit
Temperature cooling water outlet 26°C
Temperature cooling water return 31°C
Setpoint tolerance 1K
Kühlwa
Lajdpfjfgbt Eex Abdeh
[...]
