ALBERTI Polar Evolution

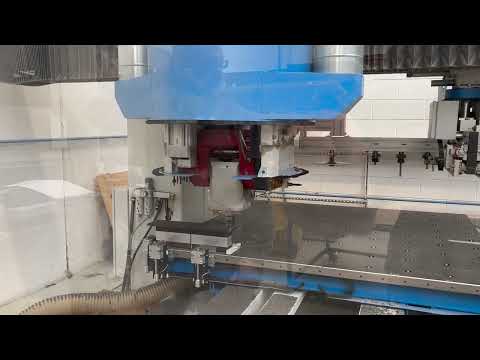

5-axis machining center ALBERTI model POLAR EVOLUTION
– Maximum working area 3500 x 1637 mm
– Z-axis travel 600 mm, workpiece thickness on suction cups up to 160 mm
– 2 phenolic resin work tables measuring 1600 x 1630 mm each: designed for alternating or synchronous operation, 'vacuum free' type, with holes connected to the vacuum system,
reference points and retractable stops controlled by CNC, equipped with 13 double-chamber suction blocks (hoseless type)
– 250 m³/h vacuum pump
– Automatic lubrication, optimized and centralized dust extraction
– Electronic control with TPA and ALBATROS software, program display in Windows environment, EDI32-TPA editor (3D CAD-CAM)
– Machine compliant with CE standards, with dual front retractable barriers (for loading/unloading both tables) and perimeter safety guards
– Machine dimensions with safety guards installed:
width approx. 7.7 m
length approx. 7 m (including 2-m loading area)
Pedpfx Aoxr Ntneggogu
height approx. 3.5 m
machine weight approx. 6500 kg
Operating groups:
5-axis electrospindle HSK63F, power 8.5 kW (11 HP) with inverter, speed range 1,000–18,000 rpm
– 12-position tool magazine at the rear
– Automatic tool pick-up and changer with R.T.T. shuttle (very fast, independent and controlled movement of 2 carriages: one for receiving the tool from unloading and one for supplying the loading tool)
– 2 drilling units mounted on the sides of the 5-axis head,
a total of 17 vertical spindles plus a head with 2 horizontal spindles
