CNC सेल-प्रसंस्करण केंद्र विथ वेलेमिंग

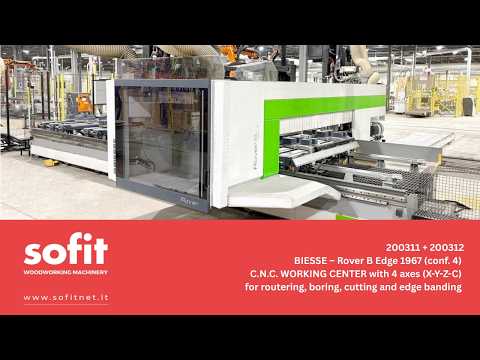

BIESSE + KUKA Rover B Edge 1967 (conf. 4)

CNC CELL with AUTOMATIC panels handling for routering, boring, cutting and edge banding
BIESSE Machine with a movable gantry (on the X-axis)–CNC with “bTouch” screen and “bPad” wireless console
Software bSolid+bEdge, connection to SOPHIA, IoT (Industrial Internet of Things) platform
N. 10 supports ATS (L = mm 1800), with automatic EPS (Electronic Positioning System)
Automatic tool change system (Tools storage plate in X-axis / 16 positions)
Useful working area (X - Y - Z) mm 6735 x 1650 x 245 (290)
Useful working area (X - Y - Z) in edge banding mm 5780 x 1930 x 60
N. 2 Working areas - Vacuum pump (capacity m3/h 250) - Motorized carpet to evacuate wastes/chips

1st Y-axis)- 2 machining heads (upper) in 4 slots
Slot 1 + Slot 2: N° 1 vertical HSK F63 electrospindle (13.2 kW) with C-axis (360°) and air blowers
Automatic tool change system (Tools storage plate in Y-axis / 6 positions)
Lsdpfxezxnphj Ab Nsah
N° 16 (or 20) independent vertical drilling spindles + N° 6 (or 8) independent horizontal drilling spindles
N° 1 Circular Saw (grooving) 120mm diameter (on the X-axis)
Slot 11 + Slot 12: N° 1 vertical spindle HSK F63 (13.2 kW) with C-axis (360°) and air blowers
Automatic tool change system (Tools storage plate in Y-axis / 6 positions)
N° 16 (or 20) independent vertical drilling spindles + N° 6 (or 8) independent horizontal drilling spindles
N° 1 Circular Saw (grooving) 120mm diameter (on the X-axis)

2nd Y-axis - Edge Banding Unit - GU60C
Glueing Unit (Hot Melt EVA glue) / Edges (tape) thickness in rolls (min/max) mm 0,4 - 3
Edge coils supporting unit (for 2+2 = 4 reels)

200312) automated panels loading +unloading, using a KUKA robot (moving along the X-axis)
