Bread slicing machine and packaging machine

De Hoog / AVT b.v.

Machine information: A-240601
Total machine length: 1.4 meters
Total machine width: 0.7 meters
Total machine height: 2.0 meters
Infeed height: 1.2 - 1.8 meters
Machine working height: 1.0 meter
Cutting thickness: 12 millimeters

Machine capacity: 1250 loaves per hour.
Electrical information:
Connected load: 400 volts, N+PE.
Power consumption: 2.5 kilowatts.
Plug type: CEE-form 5-pin 16 Amp (round red plug).
Compressed air required?: No

Minimum and maximum product dimensions:
Product length: from 150 to 350 mm.
Product width: 170 mm.
Product height: from 40 to 125 mm.

Machine description:
This cake slicer has been fully overhauled. It was completely disassembled, grit-blasted, and sprayed with a durable 2-component coating. Following this, the machine was entirely rebuilt. It features new bearings, a new drive motor, and a renewed and improved electrical system according to the latest state-of-the-art technology. The machine is mounted on wheels. The product pusher allows you to push the final loaf through the blades. This machine is in excellent condition! The machine is suitable for slicing types of bread without fruits. This machine is mounted on 4 castors and is easy to move. It includes an oil reservoir to apply slicing oil to the band blades.

Dsdpfx Absz Eud Ajyewd
Object A260302

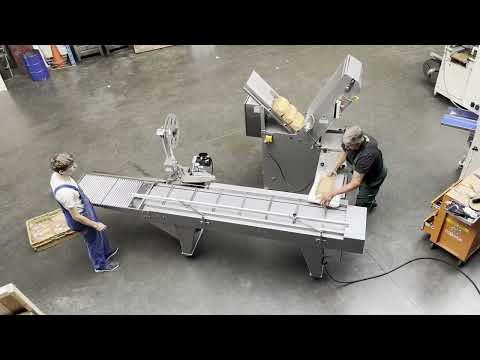

Refurbished semi-automatic (manual) packaging line equipped with a blowing table, Kwik Lok brush machine, and clip-closing machine.

Semi-automatic (manual) painted packaging line equipped with a Kwik Lok brush machine, type 1082, a Kwik Lok clip-closing machine, type 871A, and a bag-opening blowing table.
Machine direction of operation: left to right

Machine information:
Total machine length: 3.5 metres
Total machine width: 1.5 metres (including blowing table)
Total machine height: 1.8 metres
Working height: 0.9 metres
Length of conveyor section: 1.8 metres
Length of roller conveyor: 1.0 metre
Conveyor flight spacing: 305 mm

Machine capacity: 1800 packages per hour
Electrical information
Power supply: 400 V, N + PE
Connected load: 1.2 kW
Plug type: CEE-Form, 5-pin, 16 A (round red plug)
Compressed air required: No

Minimum and maximum product dimensions
Product length: 100–350 mm
Product width: 80–210 mm
Product height: 40–160 mm

Machine description:
The frame and both (2) leg assemblies are manufactured from painted profiles, manufactured by Waterlander. The machine is equipped with a Samach brush machine and a Kwik Lok clip-closing machine, suitable for Kwik Lok JNRP clips and Schutte clips. At the end of the packaging line, a 1-metre-long roller conveyor is provided for manually removing the packaged products.
The machine is mounted on wheels and is equipped with conveyor flights with a fixed transport speed. The machine is fitted with a completely new control system and has been fully refurbished. The machine is finished with a two-component high-durability topcoat.

The machine is suitable for packaging food and non-food products in plastic bags.

Included: with the machine, a painted Hoba blowing table, stainless-steel top face, and product guides.
