प्लग-इन शेल्फ

Dexion HI280 / Gesamtbreite: 1.340 mm / Gesamttiefe: 610 mm / Höhe: 1.200 mm

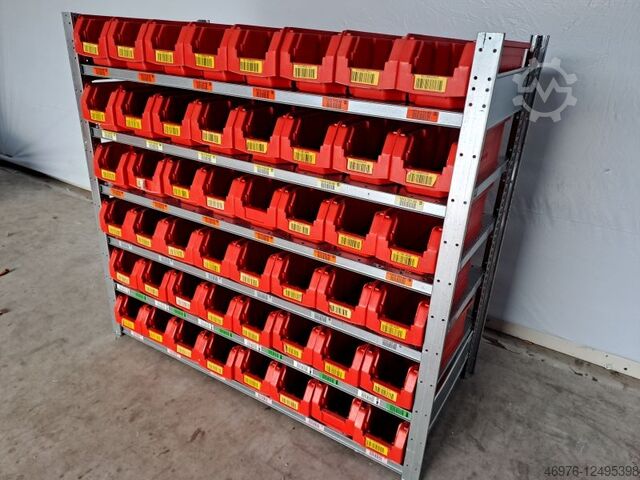

Technical data for the picking rack:
Rack system: Dexion
Type: HI280

Technical data for the installation:
Number of rack rows: 01 pcs.
Rack length: approx. 1,340 mm
Number of bays per rack row: 01 pcs. at 1,290 mm
Number of levels plus ground level: 06 pcs.

Note:
The advantage of a packing table or a picking rack is that all required tools and accessories needed for product assembly are always within easy reach.

Scope of delivery includes:
02x uprights, used
Material finish: Sendzimir galvanized
Frame profile dimensions: 50 x 55 mm
Adjustment pitch: 25 mm
Incl. horizontal and diagonal braces
Weight per piece: approx. 5.50 kg
The uprights are pre-assembled
Height: 1,200 mm
Depth: 610 mm

06x shelves, used
Material finish: Sendzimir galvanized
Dimensions: 1,275 x 575 x 30 mm
Weight per piece: approx. 4.37 kg
Max. load per shelf with evenly distributed load: 100 kg

04x leveling plates, new
Type: HI280 U-PL. STD 42X50X1.2 VZ
Material finish: Sendzimir galvanized

06x shelf beams, used
Overall length: 1,275 mm
Z-profile: 50 x 25 mm
Number of hooks: 02 pcs.
Weight per piece: approx. 0.84 kg
Material finish: Sendzimir galvanized

48x storage bins, used
Manufacturer: SSI Schäfer
Bin designation: LF 511 G ZW
External dimensions LxWxH: 500x156x143 mm
Internal dimensions LxW: 448 x 123 mm
Weight per piece: approx. 0.785 kg

01x load sign
With information on bay and shelf loads, manufacturer and order number
Dimensions: 297 x 210 x 2 mm

Csdpjn Smvhsfx Af Uogu
Note:
As this is used equipment, damage, corrosion or similar may be present.

General product information:
This item is offered for collection only. Any requested transport or shipment of this item is subject to additional charges, which can be quoted separately based on delivery location and scope.
