वायर ईडीएम मशीन

FANUC Robocut alpha iB600

General Data
Dodpfexbihwjx Aa Rjcn
Measurements width 2680 mm
Measurements depth 2790 mm
Machine weight 3000 kg

Control Unit
Brand FANUC

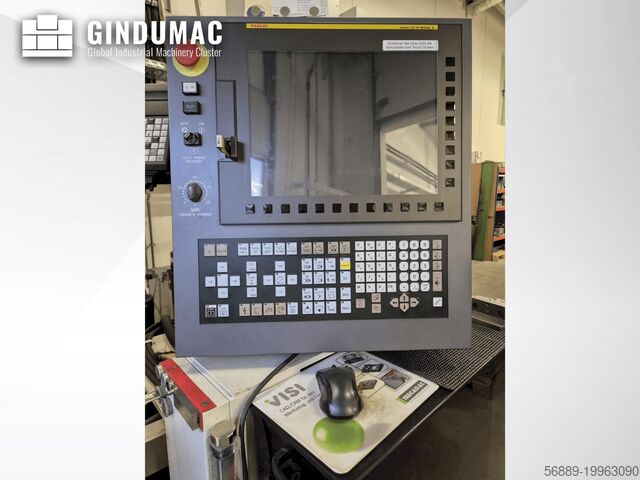

Model 31i-WB

Main Drive
Number of axis 5

Movement
X-Axis Movement 600 mm
Y-Axis Movement 400 mm
Z-Axis Movement 400 mm
V-Axis Movement 200 mm
U-Axis Movement 200 mm

Workpiece
Workpiece weight 1000 kg

Media
Power consumption 13 kVA
Air pressure 0.5 – 0.7 MPa

Additional Equipment
Automatic Front Door Option
45° Die Guide: Max Taper Angle ±45° / 70 mm
30 kg Wire Feed Unit: Max Wire Weight 30 kg

This 5-axis FANUC Robocut alpha iB600 wire EDM machine was manufactured in 2020. It features a maximum workpiece size of 1050 × 820 × 300 mm and can handle weights up to 1000 kg. The machine includes UV axis travel of 200 × 200 mm and a maximum taper angle of ±30°. Equipped with a FANUC 31i-WB controller, it offers precise control and efficient operation. If you are looking to get high-quality EDM capabilities, consider the FANUC Robocut alpha iB600 machine we have for sale. Contact us for more information.

Application Types
EDM
