Heuft Tornado W ठंडे गोंद / गीले गोंद लेबलिंग मशीन (2011)

Heuft Kaltleim / Nassleimetikettierer

Overview

This cold glue labeller was manufactured in 2014 by the German company HEUFT. It was used for the labelling and inspection of glass bottles including control of label presence, underfill detection by X-ray, and bottle breakage detection with automatic rejection. The machine includes special equipment for bottles with neck foil. It comes with 6 format parts. The Domino laser, vacuum unit and glue pumps are not included in the scope of delivery. It is available immediately and can be viewed by appointment.

Technical data

- Type: Cold glue labeller with 2 labelling stations (8 glue pallets, 6 gripper positions, machine pitch 120 mm)
- Capacity: up to 36,000 bottles per hour (max. output without orientation, as per documentation)
- Container type: glass, transparent
- Container diameter: 59-67.5 mm
- Container height: 226-260 mm
- Closure material: metallic, closure diameter: 28 mm
- Belt height: 1000 mm
- Electrical connection: 400 V, 50 Hz
- Max. Ambient temperature: 40 °C
- Device diameter container carousel: 1150 mm
- Control functions (Spectrum TX): Label control (sensors), underfill control (X-Ray), bottle breakage control, rejection
- Special feature: Processing of NRW bottles with neck film

Hsdpfowz Evyox Agxer
Scope of Delivery

- HEUFT Tornado W incl. 2 cold glue stations

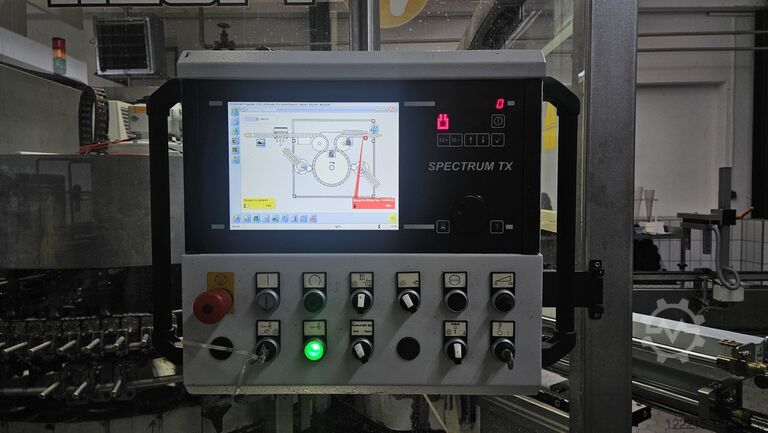

- Spectrum TX control system
- 6 format parts
- Without domino laser, vacuum cleaner and glue pumps
