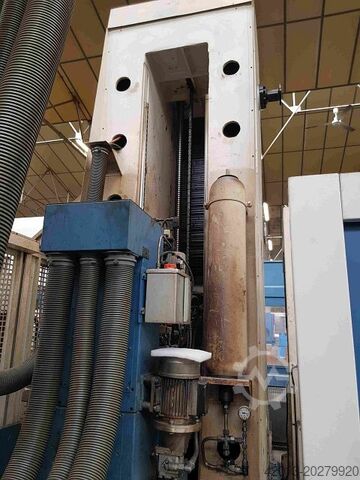

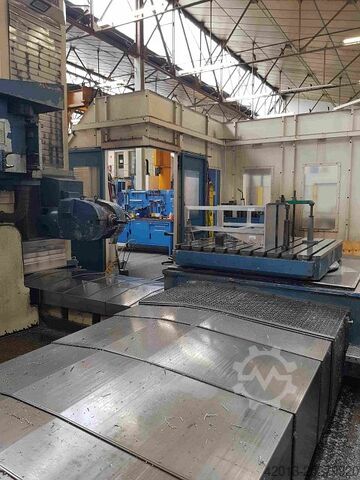

मोबाइल कॉलम फ्रेज़िंग मशीन

JUARISTI TX15 MG12

CONTROLS
.. CNC controls NUM 1060 M

WORKING RANGE -CUBIC-
Gjdpsxm Rxuofx Ab Nebu
.. number of processing axes (excl parallel axes): 2
.. X-axis travel: 3000 mm
.. Y-axis travel: 2010 mm
.. Z-axis travel: 2000 mm
.. rotating range A-axis from: 92.5 °
.. rotating range C-axis up to: 360 °

TABLE
.. table surface (left-right): 1450 mm
.. table surface (front-back): 1600 mm

FLOOR PLATE
.. total weight approx.: 12000 kg

SPINDLE / HEAD
.. spindle revolutions (max): 3000 /min
.. tool fixture: ISO SK 50
.. drive power: 37 kW

AXIS DRIVES
.. traverse velocity X (max): 25000 mm/min
.. traverse velocity Y (max): 25000 mm/min
.. traverse velocity Z (max): 25000 mm/min

ELECTRICAL SPECIFICATIONS
.. mains voltage: 400 V
.. mains frequency: 50 Hz

ATTACHMENTS
.. chip conveyor: yes
.. through spindle coolant attachment: yes
