क्षैतिज मशीनिंग केंद्र

Kitamura Mycenter-HX500iTGA

General Data
Machine weight 18000 kg

Control Unit

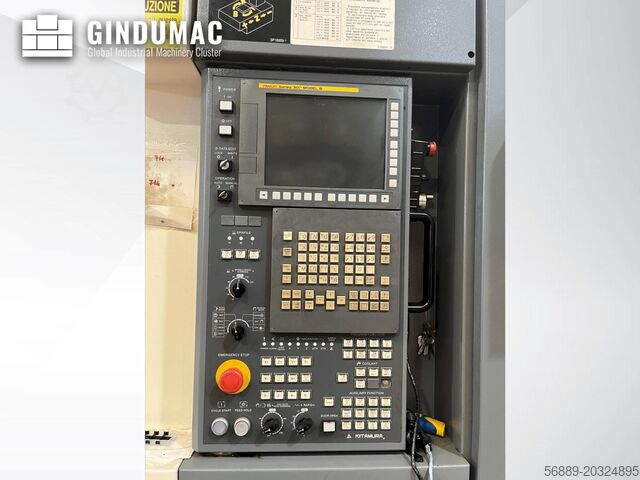

Brand FANUC
Model Series 30i-MODEL B

Main Drive
Spindle speed range 12000 rpm
Spindle motor power 26 kW (continuous) / 30 kW (30 min)
Ibodoxpku Uspfx Abdec
Tool taper NST No. 50
Number of axis 4

Movement
X-Axis Rapid Traverse 60 m/min
Y-Axis Rapid Traverse 60 m/min
Z-Axis Rapid Traverse 60 m/min

Table
Table load 800 kg

Tools
Max weight 30 kg
Max tool diameter 125 mm
Max tool length 500 mm

Media
Chip conveyor Yes

Additional Equipment
Chip Conveyor: Included

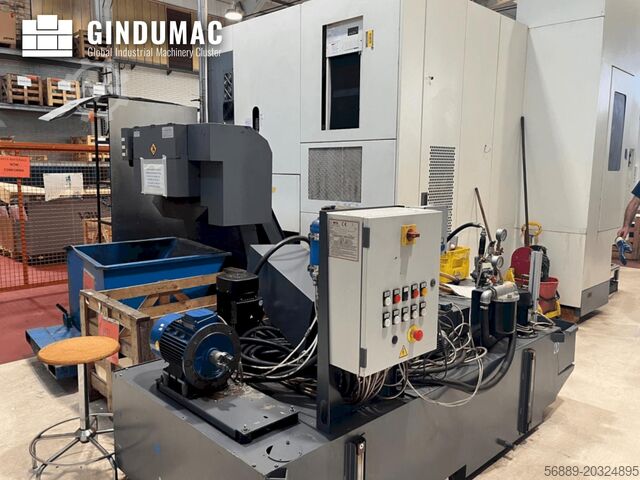

50 Bar High Pressure Coolant Through Spindle
Glass Scales on X, Y, Z Axes
Glass Scale on B Axis (Rotary Table)

This 4-axis Kitamura Mycenter-HX500iTGA was manufactured in 2011. It features a robust 500×500mm table, capable of handling loads up to 800kg, and a high-speed spindle at 12,000 rpm. The machine includes a 200-tool magazine, dual pallet changer, and advanced FANUC Series 30i Model B CNC. Ideal for precision machining with its extensive Y, Z, and X travels. Contact us for more information about this machine.

Application Types
Milling
