मशीनिंग केंद्र - लंबवत (एपीसी)

MAZAK FJV 35/60

CONTROLS
.. CNC controls MAZATROL

WORKING RANGE -CUBIC-
.. number of processing axes (excl parallel axes): 3
.. X-axis travel: 1500 mm
.. Y-axis travel: 800 mm
.. Z-axis travel: 660 mm
.. distance spindle nose - table surface (max.): 820 mm
Gbodpfx Absxm Rwws Nju

TABLE
.. table surface (left-right): 1740 mm
.. table surface (front-back): 750 mm
.. workpiece load (max): 2500 kg

SPINDLE / HEAD
.. spindle revolutions (min): 35 /min
.. spindle revolutions (max): 10000 /min
.. tool fixture: ISO SK 50

TOOL MAGAZINE
.. number of positions: 30
.. tool diameter max.: 125 mm
.. - with free neighbour positions: 210 mm
.. tool length max.: 380 mm
.. tool weight max.: 20 kg

AUTOMATIC WORKLOAD EQUIPMENT
.. number of store positions: 2

ELECTRICAL SPECIFICATIONS
.. mains power supply: 74 kVA
.. mains voltage: 400 V
.. mains frequency: 50 Hz

DIMENSIONS / WEIGHTS
.. space requirements -left/right-: 3948 mm
.. space requirements -front/back-: 8256 mm
.. total height: 3500 mm

ATTACHMENTS

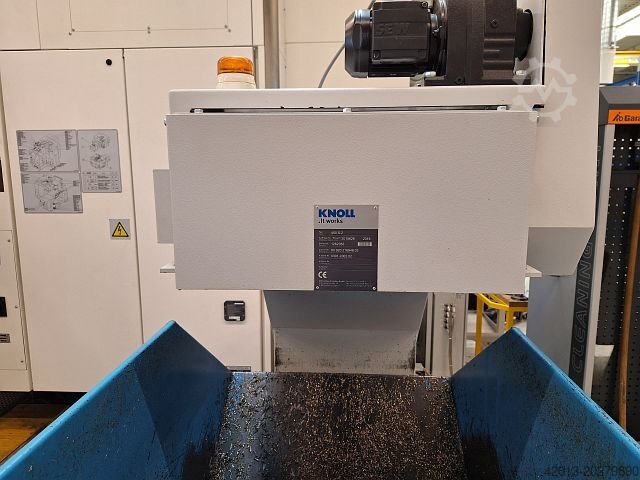

.. chip conveyor: yes
.. coolant unit: no
.. through spindle coolant attachment: yes
.. closed cabin: yes
.. European CE standards: yes


Machine comes without coolant system but with a high-pressure pump.
The magnetic plates are not included but can be purchased if you are interested.

Includes precisely calibrated and ready-to-use Brankamp monitoring system
