Bar cutting center

Pertici Scarabeo 55

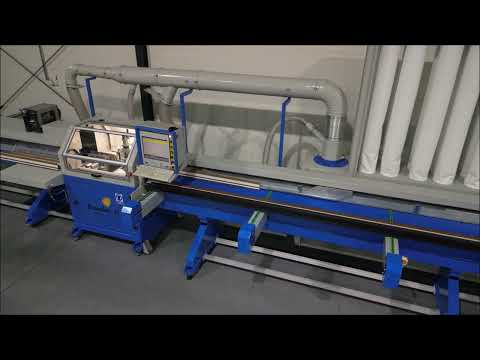

Profile cutting center Scarabeo 55
CNC cutting center with 1 controlled axis, designed to cut PVC profiles with the highest cutting speed and quality.
It consists of four different components connected in an automatic line:
1. Automatic bar stock magazine
- steel body with 6 grippers moved by belts, driven by electric motors
- max. capacity 8-10 profiles (depending on their width)
- equipped with a bar presence detection device

2. Automatic Profile Feeding Unit
3. Automatic cutting unit
- ø 500 mm blade
- electromotor 3 kW, 2,800 RPM
- cuts at three main angles: 45° – 90° – 135°
- special centering device which allows the blade center of rotation to be positioned in the center of the profile section, so that wedge cuts can also be made automatically
- equipped with a special evacuation system for waste and cutting chips
- fully enclosed with a front door for free access to the cutting area for calibration, cleaning, and maintenance purposes
- pneumatic pistol for blowing chips

4. Automatic unloading unit
- automatic discharge device with pneumatic control
- flat table for storing cut profiles
Dcjdpfsrungaex Aicsp
- safety guard for moving parts

Power: 7.2 kW
Weight: 1,500 kg
- Industrial computer
- TFT color LCD screen
- Keyboard
- data retrieval from the keyboard or ON-LINE
- control of each function on the monitor
- Virtually unlimited number of data on the profiles to be cut
- label printer with choice of format and letter size
- collection of data on the remains of cut profiles (waste)
- the ability to collect statistical data (weekly and monthly report)
- Automatic fault diagnosis
Sizes: width: 2300 mm, length: 12500 mm
Completely refurbished, 6 months warranty on parts. Ready for work
Available for viewing at the company's headquarters.
