SCHORR Hochhubwagen 1200KG Monomast Freihub

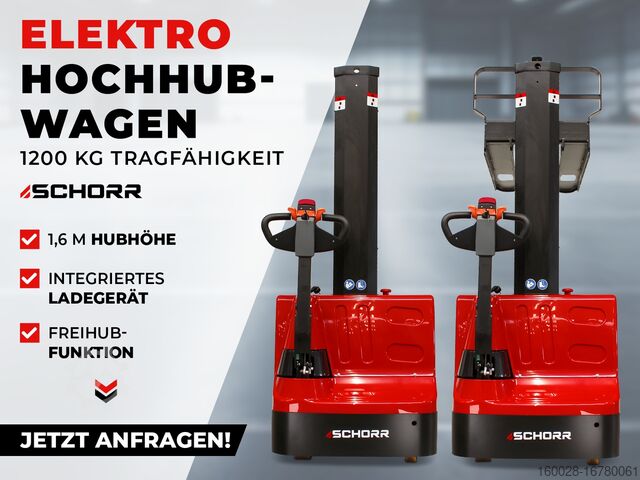

SCHORR electric pallet truck 1200KG with a lifting height of 1600mm
The SCHORR electric high lift pallet truck helps you to transport heavy loads of up to 1200kg. It reaches a lifting height of 1600mm.

The forks have a length of 1150mm and are therefore ideal for one-way pallets and Euro pallets.

The model is characterized in particular by its robust design and has an integrated protective grille made of iron steel.

The mono mast ensures better visibility when transporting loads. This allows you to keep an overview more quickly.

Charging is extremely easy thanks to the integrated charger. You can connect the pallet truck directly to a conventional 230V socket and charge it.

The pallet truck has a high-quality CURTIS control system.

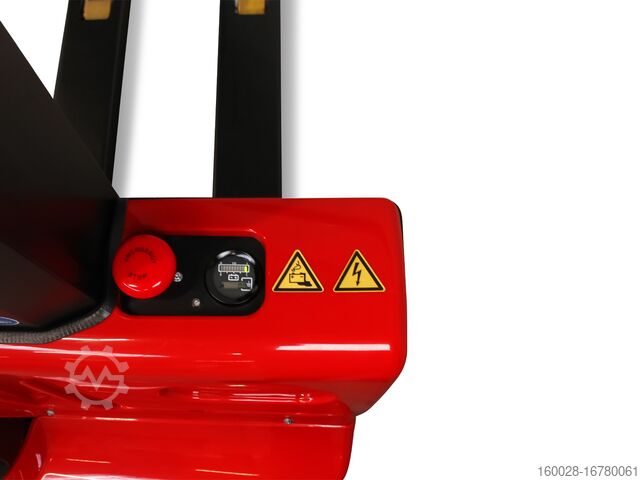

The control instruments such as the battery charge indicator, the emergency switch and the keys are centrally located and therefore in the operator's direct field of vision.

The SCHORR high lift truck also has various drive programs, e.g. the slow-moving creep mode (Turtle).

The versatility of our SCHORR high lift pallet truck and its high quality have proven themselves over the years and have won over our customers.

Further advantages of SCHORR electric pallet trucks:

-- Integrated charger
-- Mono mast: full free lift
-- Polyurethane tires: Durable and abrasion-resistant
-- Robustly built chassis
-- Full enclosure of the vehicle housing
-- Waterproof control unit
-- Low noise level of 69 dB

Technical data

Manufacturer (abbreviation): SCHORR
Type designation of the manufacturer: RR12HHE
Load capacity: 1.2t
Model: 160E
Mast type: Mono mast
Own weight incl. batteries: 436kg
Drive: Electric
Tires: Polyurethane

Basic dimensions

Overall length: 1755mm
Overall width: 795mm
Length including fork crown: 605mm
Lift: 1600mm
Height mast retracted: 1994mm
Height mast extended: 2043mm
Fork dimensions DIN ISO 2331: 60mm x 160mm x 1150mm
Fork outer spacing: 570mm
Aisle width with pallet: 800x1200 lengthwise 2068mm
Turning radius: 1366mm

Speed

Travel speed with/without load: 4.0km/h / 4.2km/h
Lifting speed with/without load: 0.09m/s / 0.14 m/s
Lowering speed with/without load: 0.11 m/s / 0.1 m/s
Max. Climbing ability with/without load: 6m/s / 8m/s

*Further technical data available on request.

Would you prefer to finance or lease the device? No problem! We also offer you attractive options for this. Simply contact us and we will advise you on the various options. We look forward to hearing from you!

Our competent team will be happy to answer any questions you may have about the SCHORR 1200 kg electric pallet truck. You can reach us by phone or email. We look forward to hearing from you and assisting you with advice.
