STONE LB20 S20 बोतल सुखाने की मशीन (1995)

STONE Flaschentrockner

Overview

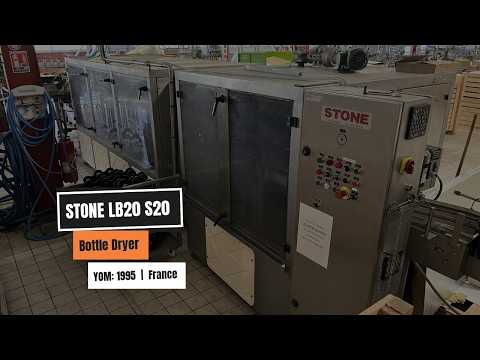

This bottle washer-dryer was built in 1995 by the French manufacturer STONE. It cleaned and dried the outside of filled glass bottles ahead of labelling in a wine bottling line with an output of 6,000 bottles per hour, running 375 ml, 750 ml and 1 L formats. The machine combines a rotary washing module (LB20) with vertical rotating brushes and a 3 m air drying tunnel (S20), linked by the bottle conveyor. It is still installed and under power and can be visited on request.

Technical data

- Manufacturer: STONE
- Model: LB20 S20
- Year of manufacture: 1995
- Machine type: bottle washer-dryer (external washing and drying)
- Output: 6,000 bottles per hour
- Containers: glass bottles
- Formats: 375 ml, 750 ml, 1 L
- Washing module length: approx. 1,250 mm
- Drying tunnel length: approx. 3,000 mm
- Overall length incl. conveyors: approx. 7,050 mm, width approx. 1,528 mm
- Electrical power: 2 kW
- Compressed air: 6 bar (15 NL per cycle)

Equipment

- Rotary washing module: star wheel carousel with vertical rotating brushes for neck, body and base
- Air drying tunnel with blower-fed air ducts along the bottle path
- Infeed and outfeed conveyors with infeed star wheel
- Set of format star wheels
Fpodpsz Rnc Rjfx Anysn
- Stainless steel frame with transparent guard doors
- Control panel with emergency stop and separate electrical cabinet with frequency inverter
- Layout drawing available

Condition

Still installed and under power. An inspection on site is possible on request. Dismantling and loading are not included.

Availability

Available immediately. Location: France.
