बीम के लिए कटिंग सेंटर

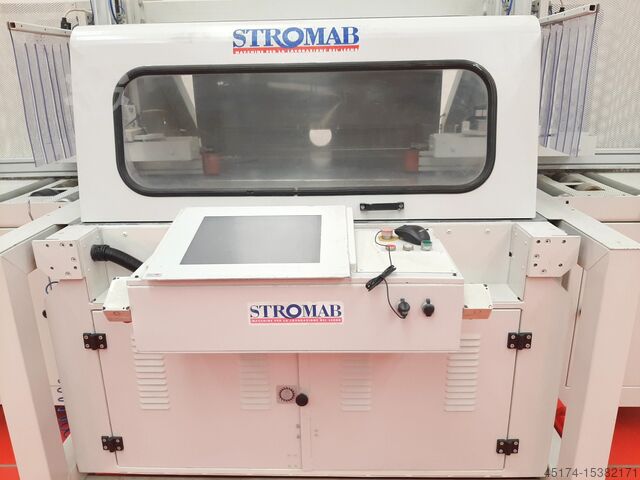

STROMAB CT 800

Code: 0254
Brand: STROMAB
Model: CT 800 - CE Standard

Cutting centre for beams, wood carpentry, wooden roofs, sawmill, balconies, and various - CE Standard
Codpfx Absrzqy Nsuopu
CE Standard

Technical data
Blade diameter mm 800
Motor power Hp 20
N° 5 axis controlled by programmer : Saw table rotation ( 0-340°) - Speed of the saw table rotation 9 sec. each 180° - Blade beveling from 90° to 45° (speed of the blade beveling 20 sec.) - Height of the blade above the table ( speed 15 sec. each 10 cm) - Beam positioning and measuring ( speed 17 mt/min) - Motorized positioning of the saw table compared to the saw fence mm 600
Photocell for the automatic reading of workpiece beginning
Cutting capacity at 90° with single stroke: mm 280 x 290 / 250 x 390 / 200 x 450
At 90° with saw table sliding and repeted cut mm 280 x 770 / 250 x 840
At 45° with single stroke mm 200 x 210
At 45° with saw table sliding and repeted cut mm 200 x 760
Maximum ripping height mm 300
Cutting precision : +/- 2 mm on 10 mt beam (straight beam ) - +/-0,2° on rotation edge of the table - +/-0,2° on inclination angle of the blade
Control by industry-standard PC Touch- Screen - Windows Operating System - USB ports - Ethernet
Rollers: :
n° 4 idle rollers benches mt. 2 with rollers diameter 133 mm
Widia blade diameter 800 mm
Compressed air 6/7 bar
Overall dimensions of mounted machine with roller conveyors: mm 7000 x 2600 x 2200 h
Machine weight kg 2900
Total weight kg 3400 (Machine + roller benches)
