पोर्टल मिलिंग मशीन

UNISIGN Uniport 6000

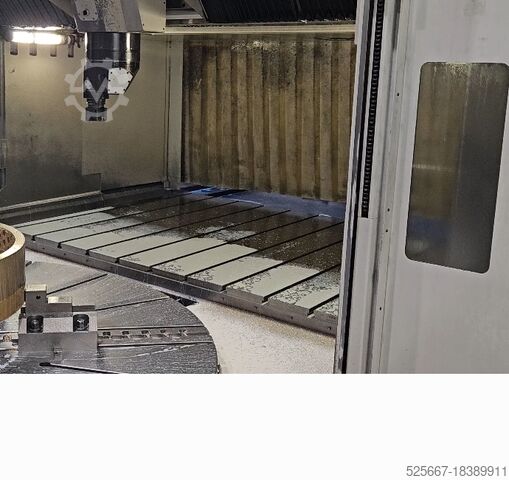

A used CNC portal milling machine with a C-axis for turning (CNC turning, CNC milling and angle head machining).
Boring machine machining!
Hirth gearing!

TRAVEL PATHS
X: 3,000 mm
Y: 3,000 mm
Z: 1,000 mm
Table diameter: 2,500 mm
Max. turning diameter: 3,000 mm
Max: turning height: 1,000 mm
Machine: Uniport 6000
Boring machine work, also CNC turning, CNC milling and angle head machining. All in one clamping, combined with the speed and precision of a CNC portal milling machine.

TRAVEL PATHS

X: 3,000 mm

Y: 3,000 mm

Z: 1,000 mm

Dimensions

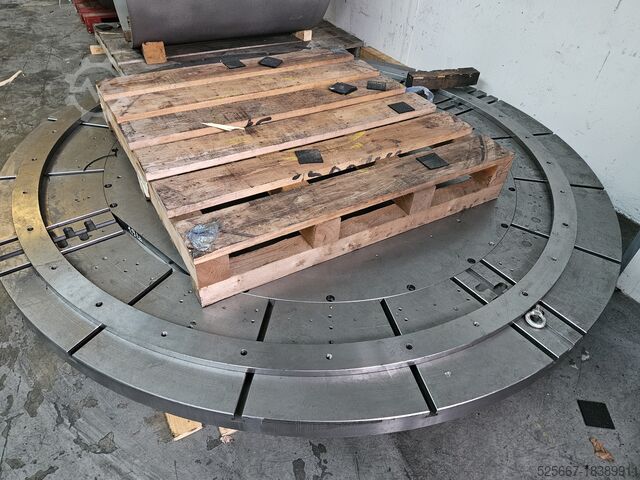

Table diameter: 2,500 mm & 2,000 mm

Max. turning diameter: 3,000 mm & 2,500 mm

Max: turning height: 1,000 mm

C-axis for turning

New price: €1.8 million

Ncodpovvh R Dsfx Aa Rel
Dismantling: by arrangement

The machine comes with a protective cover so that no chips get into the Hirth gearing on the slide during milling.

Then there is the turning attachment head for the turning tools and an angle head for lateral machining on the plate field or on the rotary table.

You can swivel this over the Hirth gearing by 2.5° each.

All holders (milling, turning, angle head) are clamped using HSK-100.

The machine comes with a radio probe from M&H (Hexagon) for measuring and zero point probing.



The machine is in operation and can be inspected on site.
A video of the machine is available.
