गाइडवे पीसने की मशीन

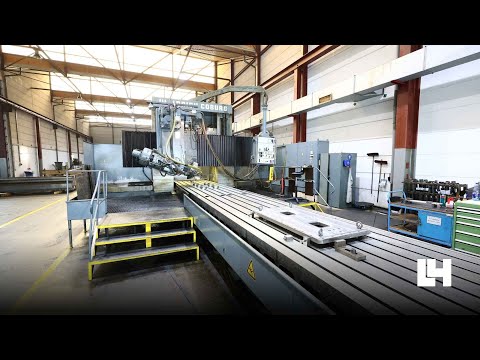

WALDRICH-COBURG 0-25 S 2525

grinding length 8400 mm
grinding width 1450 mm
workpiece height 1250 mm
surface area 8000 x 1250 mm
table height over floor 920 mm
distance between columns 1470 mm
workpiece weight max. 59700 kg
weight of the machine ca. 59,7 t
dimensions of the machine ca. 22 x 5 x 5 m
Adjustment ranges:
-Crossbeam, vertical 1250 mm
-Grinding support, horizontal 3100 mm

Adjustment speeds:
-Machine table (X-axis)
infinitely variable 1-45 m/min
Table creep speed 5 m/min

-Grinding support, horizontal (Y-axis)
Rapid traverse 3000 mm/min
Feed, step 0.001-0.099 mm
Feed rate, continuous 100-3000 mm/min
Creep speed 18+1 mm/min
Tip infeed 0.001-0.019 mm
Dcjdpfevr Hgvsx Aa Ron

-Crossbeam (W-axis)
Rapid traverse 410 mm/min

Table drive:
-Oil transmission, Type Iv4
-Cylinder-Ø 185 mm
-Piston rod Ø 130 mm
-Drive motor 22 kW
