वर्टिकल वुड मशीनी केंद्र

Weeke Homag BHX 200

HOMAG / WEEKE OPTIMAT BHX 200 CNC – Year of manufacture 2016 – HSK63 9 kW – Clamex-P – automatic tool changer – extensive equipment

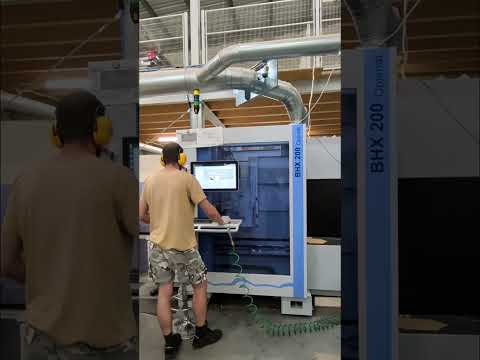

We are selling our HOMAG / WEEKE OPTIMAT BHX 200 vertical CNC machining center, manufactured in 2016. We purchased the machine directly from HOMAG Polska in 2018.

Before the purchase, the machine was presented at a trade fair in Germany. It was exhibited with a very extensive range of equipment, which was one of the main reasons for our purchase.

Originally, we planned to integrate the BHX 200 into our production line as part of further automation by connecting it to an industrial robot. Ultimately, we did not receive EU funding for this investment. At the same time, our current production volume is not large enough to utilize the full potential of this machine. This is also evident in the relatively low operating hours.

For this reason, we have decided to sell the machine.

The BHX 200 has served us reliably for many years and is still in continuous production today. We use it to manufacture furniture components from sheet materials. The machine operates very precisely and reliably and is ideally suited for flexible furniture production.

This is not a basic BHX 200 with standard equipment. The machine has a very extensive configuration for drilling, milling, grooving, and hardware processing.

Equipment:

* Vertical drilling head V15 High Speed with 15 individually controlled spindles
* 6 horizontal drilling spindles in the X-axis
* 4 horizontal drilling spindles in the Y-axis
* Additional vertical 3-spindle drilling head for hardware
* HSK63 milling spindle
* Power up to 7.5 / 9 kW
* Speed range 1,250–24,000 rpm
* Automatic tool changer
* Automatic pick-up tool magazine with 4 positions for HSK63 tools or units
* Special unit for Lamello Clamex-P
* Unit for grooving in the X and Y axes
* Optical workpiece control in X and Y
* Automatically positioned workpiece clamps
* Automatic adjustment to workpiece thickness
* Integrated 1D/2D barcode system including wireless Datalogic barcode scanner and base station

Workpiece dimensions:

Length: 200–3,050 mm
Width: 50–1,250 mm
Thickness: 8–80 mm
Lrsdpfezzxzmjx Abpsu
Maximum workpiece weight: 60 kg

Control system and software:

* HOMAG powerControl / powerTouch
* 21.5" Full-HD touchscreen
* woodWOP
* DXF Import Basic
* Tool database
* Production list management
* woodScan
* Ethernet
* UPS
* ECO Plus
* Climate control for the control cabinet

The particular strength of this machine lies in its versatility. It is particularly suitable for manufacturers who produce many different types of furniture, sizes, and small to medium batch sizes.

The combination of vertical and horizontal drilling, milling, grooving, Clamex-P processing, and automatic tool changer allows a very large number of machining steps to be performed on a single machine.

The machine is available immediately.

We are confident in its very good technical condition. It is still in use in our production. An inspection and demonstration of the machine in operation can be arranged by appointment.

Location: Białystok, Poland.
