WEILER E30X750 CNC-Drehmaschine-BJ 2007 - 8000h

For sale is a cycle-controlled WEILER E30X750 CNC lathe equipped with Siemens 810 D control.

Manufacturer/Model: WEILER E30x750
Year of manufacture: 2007
Controller: Siemens 810 D
Condition: good, fully functional
Location: Austria (Graz)
Inspection: On-site or via video call by arrangement

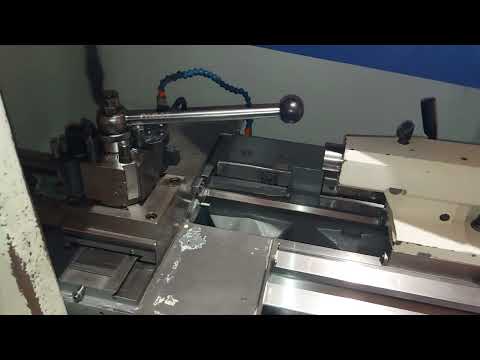

Photos/Video: Additional images and videos of the running machine available upon request.

Machine on-time (powered hours): 26,492 h
The actual operating hours are considerably lower! Based on experience, the spindle running time (actual turning) typically accounts for only about 30–50% of the powered hours (i.e. approx. 8,000 to 13,000 hours).

Technical specifications:

Working area
- Centre height: 165 mm
- Swing diameter over bed: 330 mm
- Swing diameter over cross slide: 160 mm
- Centre distance: 750 mm

Lathe spindle
- Spindle nose DIN 55027 / DIN ISO 702-3: size 5
- Spindle bore: 40.5 mm
- Spindle diameter at front bearing: 70 mm
- Max. torque at spindle: 180 Nm

Main drive
- Drive power 100% / 60% duty cycle: 9 / 11 kW
- Speed range: 1–4,500 rpm
- Number of speeds: stepless

Feed / rapid traverse
- Feed drive: 3-phase AC feed drives
- Feed range (stepless):
longitudinal: 0.001–50 mm/rev (note: also specified at 0–20 mm/rev)
cross: 0.001–50 mm/rev
- Feed force:
longitudinal: 6,000 N
cross: 3,000 N
- Max. rapid traverse rate longitudinal/cross: 8 / 4 m/min (note: also indicated as 10 / 7.5 / 5 / 3.5 m/min)

Thread cutting range
- Metric threads: 0.1–2,000 mm
- Inch threads: 112–1/64 TPI

Tailstock / quill
- Quill diameter: 50 mm
- Quill stroke: 110 mm
- Internal taper DIN 228: MK 3

Ijdpovphv Tefx Ah Hshw
Accuracy
- Acceptance accuracy: DIN 8605

Dimensions / Weight
- Machine weight: approx. 1,400 kg
- Dimensions (L × W × H): 1,800 × 1,350 × 1,700 mm

Note: The original purchase price was €97,000.

Interested? Contact us for further information or to arrange a viewing appointment.
