ठोस सतह के लिए वैक्यूम/मेम्ब्रेन प्रेस

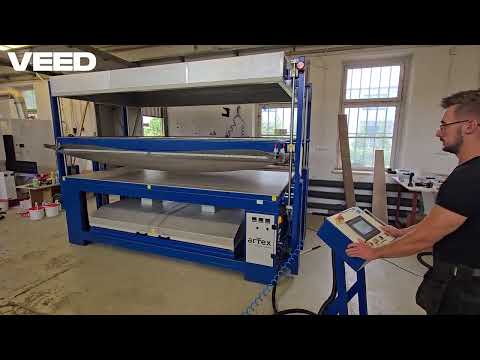

Artex TVG Special

The vacuum membrane press with a pneumatically lifted membrane is designed for heating and forming thermoformable materials such as PET felt, solid surface (CORIAN, HI-MACS, STARON, KERROCK, LG, PLEXIGLAS, and others), which can be molded into any shape after heat treatment. It is equipped with a heating system that shortens the bonding time and increases production efficiency. The TVG series vacuum presses are intended for both small and large manufacturing facilities.

Manufacturing date 2021
Applications
• Veneering flat and shaped elements with natural veneer (doors, frames, chairs, tables, furniture, coffins)
• Laminating elements with HPL laminates in 2D format (kitchen countertops, window sills)
• Pressing textured surfaces (stone veneer, decorative mats)
• Manufacturing components using the sandwich method (columns, semi-circles, flat surfaces)
• Wrapping car cockpit elements with leather (dashboard, gear shift lever, etc.)
• Forming mineral-acrylic solid surface materials such as Corian, Staron, Hi-Macs, etc.
• Forming thermoplastic plastics
• Forming PET feltProduct Models – TVG Special Series

Construction of the Press
Lsdpfexqzzhjx Ab Rjru
• Steel Frame: The press is built on a robust, welded steel frame ensuring stability and durability during operation.
• Vacuum Table: The worktable is equipped with a vacuum system that securely holds the material in place during the forming process.
• Membrane System: A flexible, heat-resistant membrane is pneumatically lifted and lowered, allowing precise pressure distribution on the material.
• Heating System: Integrated heating elements (infrared or quartz heaters) provide uniform heat distribution, essential for effective thermoforming.
• Control Panel: An intuitive control panel allows easy regulation of temperature, vacuum pressure, and membrane operation.
• Vacuum Pump: A high-performance vacuum pump ensures efficient air evacuation for tight membrane adherence.
• Safety Features: Equipped with safety sensors and emergency stop buttons to ensure operator protection.
• Optional Components: Additional options may include programmable controllers (PLC), touchscreen interfaces, or automatic cycle control for improved process automation.
•
Technical Specifications
Parameter
Working field size (length × width), mm: 3000 × 1500
Maximum height of the processed element with 500mm width in the center of the field: 550 mm
Heating plate size, pneumatically lifted: 2000 × 1000
Silicone membrane 700%, max temperature: 230°C
Heater power, kW: 6 kW + hot air circulation
Pump power, kW: 1.25
Vacuum pump capacity, m³/h: 40
Working vacuum, kg/cm² (bar): – 0.85
Protection level: IP53
Noise level, dB: < 70
Voltage, V: 3P 400 50Hz
Machine dimensions (mm):
– Length 3500
– Width 1800
– Height (working) 2200 (3100)
Weight, kg: 1250


The TVG Special models are equipped with a pneumatically lifted membrane, ensuring high precision and repeatability of forming processes. The reinforced structure and advanced control system guarantee reliable operation in continuous production environments.
