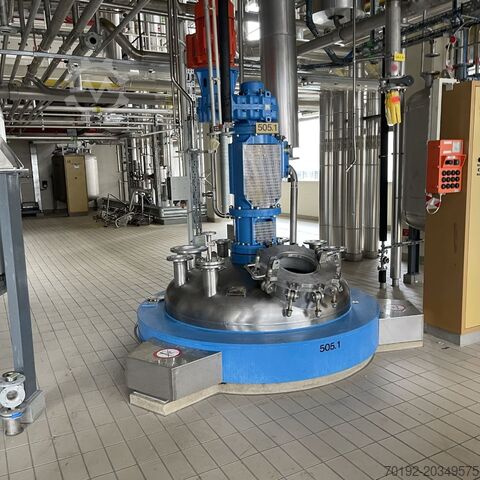

एंकर स्टिरर के साथ 3690 लीटर हीट-/कूल योग्य रिएक्टर वेसल, AISI316

HANAG 8756

Location: Bremen
Condition: Used
Volume: 3,690 liters
Vacuum: 1.0 bar
Max. Overpressure: 3.2 bar
Tank

Maximum Operating Temperature Tank / °C: 200°C

Design: Suspended
Tank

Base Type: Ring

Heating/Cooling: Available
Double Jacket Volume: 145.0 liters
Max. Permitted Operating Overpressure: 16.0 bar
Kedpoxqayiofx Abdenc
Heating/Cooling Jacket

Max. Permitted Operating Vacuum Double Jacket / Tube Area / bar: 1.0 bar

Max. Permitted Operating Temperature: 200°C
Cylinder Temperature Control: Half-pipe coil
Heating/Cooling Jacket

Bottom Temperature Control: Half-pipe coil

Internal Diameter: 1,600 mm
Cylindrical Height: 1,380 mm
Total Height: 4,350 mm
Technical Specifications / Dimensions

Bottom Wall Thickness: 6.5 mm

Cylinder Wall Thickness: 6 mm
Technical Specifications / Dimensions

Top Wall Thickness: 7.9 mm

Technical Documentation: Drawings, various documents, approval certificate
Equipment

Manhole / Dome: in the top (DN 500)

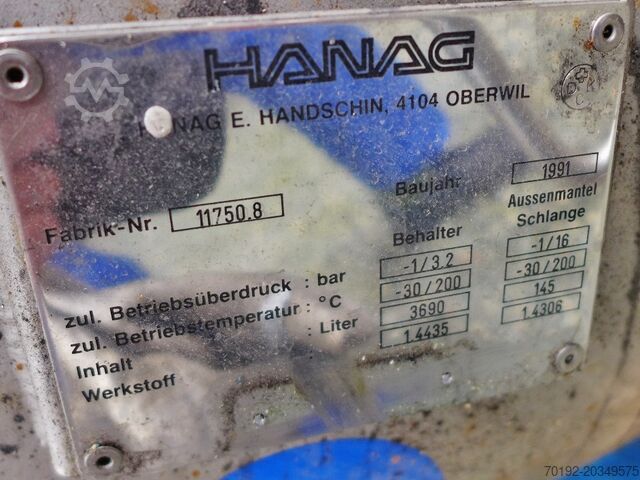

Nameplate:
Equipment: Lifting lugs
Equipment

Outlet (Alternative Entry): 130 mm

Remarks: Manhole cover incomplete (e.g., sight glass missing, see photos); support ring made of Fe
Previous application: Pharmaceutical chemicals
Product-contact material: V4A 1.4435 (AISI316)
Material specification

Temperature control system material: AISI 304 (V2A) 1.4306
Agitator

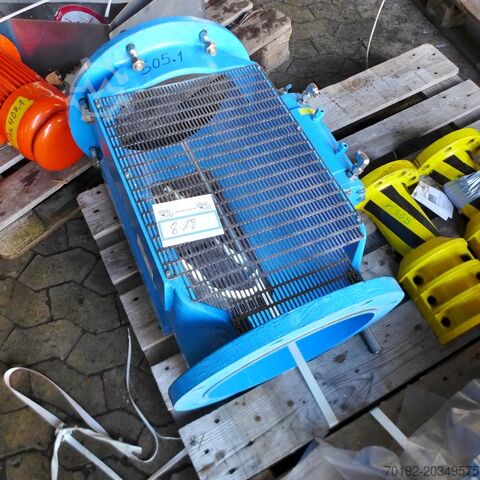

Agitator manufacturer: Ekato

Power: 11 kW
Speed: 6 - 32 rpm

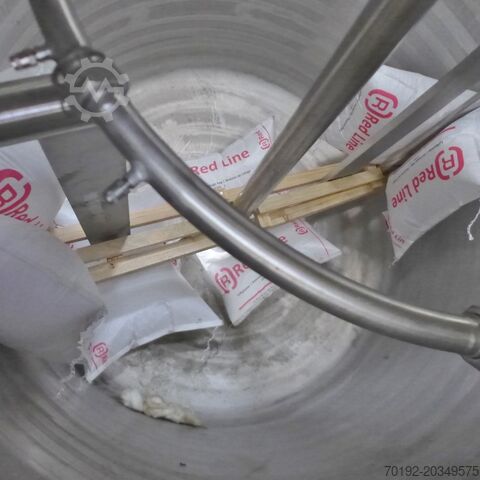

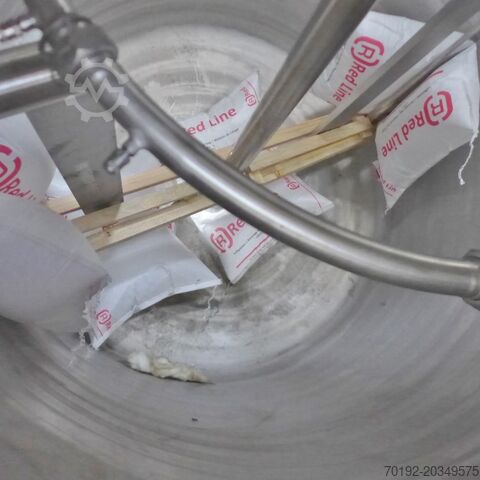

Agitator: Anchor agitator
Agitator seal: Mechanical seal with thermosiphon vessel
Agitator

Voltage: 400 V

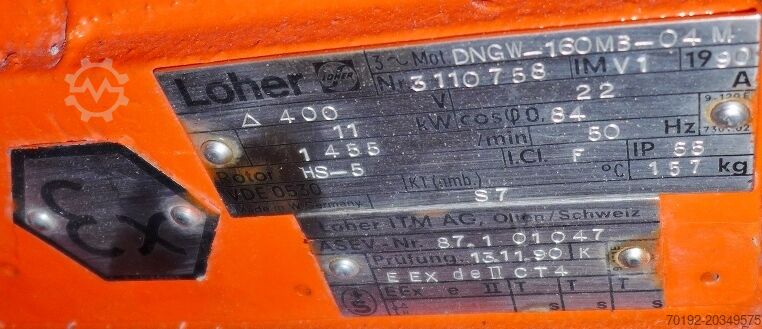

Explosion protection: Motor is explosion-proof (compliance with applicable ATEX regulations under site conditions must be verified)
Agitator

Agitator arrangement: Centered on the top
Agitator equipment:

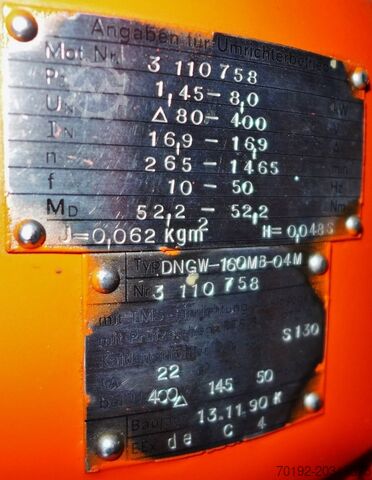

Agitator drive speed was previously controlled by an external frequency converter (no longer available); various technical documents for the agitator are available.
