V4A से बना 2750 लीटर तापित/शीतलन योग्य दाबपात्र

Kleiser und Lösch 8080

GENERAL
Design: suspended
Remarks: 2 steel mounting lugs (bearing surfaces reversed, with cut-off steel parts; see photos); Additional technical documentation available
Speed: 313 rpm
Internal diameter: 1,400 mm
Explosion protection: motor is explosion-proof (compliance with current ATEX regulations under local conditions must be verified)
Total height: 3,050 mm
Heating/Cooling: available
Power: 1.1 kW
Max. permissible operating overpressure: 12.0 bar
Max. overpressure: 3.2 bar
Agitator type: propeller
Base type: mounting lugs
Location: Bremen
Technical documentation: drawing
Cylinder temperature control: half-pipe coil
Nameplate:
Vacuum: 1.0 bar
Volume: 2,750 liters
Double jacket volume: 62.0 liters
Cylinder wall thickness: 5 mm
Product-contact material: V4A 1.4571 (AISI316)
Condition: used
Cylindrical height: 1,410 mm
Previous application: pharmaceutical chemistry

VESSEL
Max. operating temperature vessel / °C: 200 °C

HEATING/COOLING JACKET
Bottom temperature control: half-pipe coil

EQUIPMENT
Manway / dome: at top head
Outlet: available
Outlet (alternative entry): 130 mm
Godpfx Adoxqa S So Heuk
Note: manway cover plated, metallic discolorations inside

MATERIAL SPECIFICATION
Heating/cooling system material: V2A 1.4541 (AISI304)

AGITATOR
Voltage: 220/380 Volt

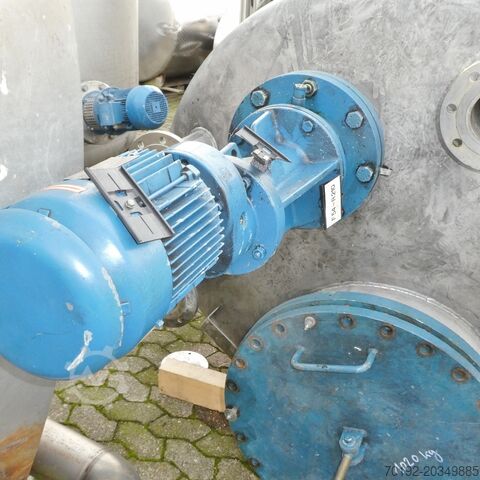

Agitator arrangement: eccentric on top head

TECHNICAL DATA / DIMENSIONS
Bottom wall thickness: 5 mm
Top wall thickness: 7 mm
