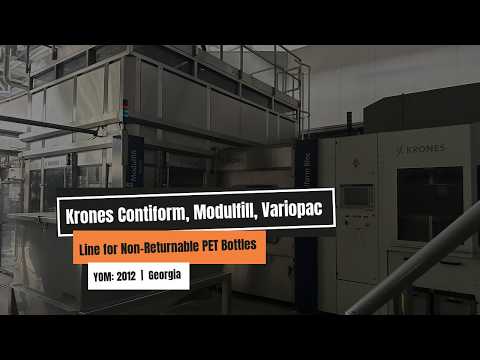

Krones Contiform, Modulfill, Variopac पीईटी (वन-वे) के लिए बॉटलिंग लाइन (2012)

Krones Abfülllinie für PET (Einweg)

Overview

Complete Krones PET line from 2012 for carbonated water in non-returnable PET bottles of 0.5 L, 1.0 L and 1.5 L, rated at 16,000 bottles/h on the 1.5 L format. The line runs from preform feeding through a blow moulder-filler-capper bloc in a clean room, beverage treatment and CIP, inspection, drying, coding and wrap-around labelling, to shrink-film packing with handle application, palletizing and stretch wrapping. A separate sleeve section with sleeve labeller, steam shrink tunnel, inspection and two dryers is included.

Technical data

- Year of manufacture: 2012
- Output: 16,000 bottles/h (1.5 L)
- Product: carbonated water
- Bottles: PET, 0.5 L, 1.0 L and 1.5 L
- Labeller: up to 20,000 bottles/h
- Packer, palletizer and stretch wrapper: up to 24,000 bottles/h
- Packs: shrink-film packs with carry handle, 3x2 and 4x3
- Pallets: 800 x 1200 mm and 1000 x 1200 mm
- Electrical: 380/220 V, 3/N/PE, 50 Hz

Scope of Delivery

- Preform feed unit | Krones | CONTIFEED | with tilting device for the preform hopper | 2012
- Preform interior cleaning | Krones | PREJET | 2012
- Stretch blow moulder | Krones | CONTIFORM S8 | 16,000 bottles/h (1.5 L) | 2012
- Filler-capper | Krones | MODULFILL VFS | 60 filling valves, 16,000 bottles/h (1.5 L) | 2012
- Clean room | Krones | for the blow moulder-filler-capper bloc | 2012
- Closure conveyor | Krones | 2012
- Beverage treatment | Krones | CARBOFLOW | 2012
- CIP system | Krones | VARIOCLEAN | 30 m³/h | 2012
- Container conveyors | Krones | SYNCO | 2012
- Inspection machine | Krones | CHECKMAT 707 | 2012
- Container dryer | Krones | LINADRY | 2012
- Container coding | Videojet | inkjet coder | 2012
- Labelling machine | Krones | CONTIROLL COMBI | wrap-around OPP labels, up to 20,000 bottles/h | 2012
- Inspection machine | Krones | CHECKMAT 731 | 2012
- Sleeve labeller | Krones | SLEEVEMATIC | 2017
- Steam shrink tunnel | Krones | SHRINKMAT
- Inspection machine for the sleeve section | Krones | CHECKMAT
- 2 container dryers for the sleeve section | Krones | LINADRY | 2017
- Pack conveyors | Krones | MULTICO | 2012
- Shrink-film packer | Krones | VARIOPAC PRO FS | 3x2 and 4x3 packs, up to 24,000 bottles/h | 2012
- Handle applicator | Krones | VARIOSTICK | 2012
- Palletizer | Krones | MODULPAL | 800 x 1200 and 1000 x 1200 mm pallets, up to 24,000 bottles/h | 2012
- Pallet conveyors | Krones | PALCO | 2012
- Stretch wrapper | Robopac | 2012
Kdodpfx Aasz Dw Uusnot
- Electrical power distribution for the line | Krones | 2012

Condition

Dismantled and stored. Inspection on site by appointment.

Availability

Available immediately. Location: Georgia.
