EXPERT L 444 GT थ्रू-फीड ड्रिलिंग मशीन

Lazzoni EXPERT L 444 GT

Machine Description:
We offer for sale a brand-new machine that was purchased for a specific project. However, this project was not carried out, and as a result, the machine has remained unused since its acquisition.
The unit is in perfect technical and visual condition, meeting the manufacturer's specifications. The machine is stored under appropriate conditions, in accordance with the manufacturer's recommendations.
The purchase was made from an authorized distributor, which confirms the authenticity of the unit. The machine has never been used in production, making it an exceptional value compared to new equipment.

Technical Data:
Pgsdpfxs Agfr No Aiyou
- Capacity: 10 parts per minute (3000-6000 parts per shift)
- The machine has a parts magazine, which significantly facilitates operation.
- Parts are transported from the magazine using a chain.

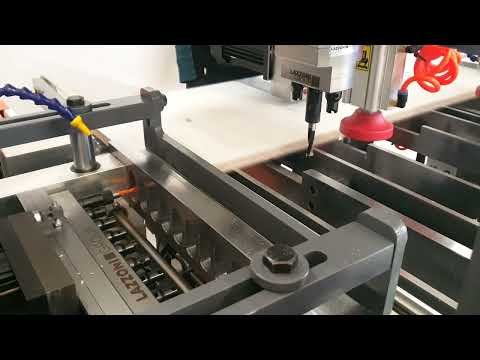

- The machine performs drilling from 5 sides simultaneously (from the bottom, top, back, left, and right).
- The drill can be widely configured, including customized heads, and the addition or removal of units.

TECHNICAL SPECIFICATION:

- Panel length: 300 – 2500 mm
- Panel width: 30 – 250 mm
- Panel thickness: 8 - 40 mm

Number of lower drilling units: 4
Number of upper drilling units: 4
Number of rear drilling units: 4
Number of horizontal left and right units: 1 x left, 1 x right
Drill weight: 3250 kg

HORIZONTAL HEADS (LEFT AND RIGHT)
- Number of heads: 1 x left, 1 x right
- Spacing: 32 mm
- Number of spindles: 9 left head, 9 right head
- Maximum drilling depth: 40 mm

VERTICAL LOWER HEADS
- Number of heads: 4
- Spacing: 32 mm
- Number of spindles: 3 or 5 - Depending on the selected head
- Maximum drilling depth: 40 mm

VERTICAL UPPER HEADS
- Number of heads: 4
- Spacing: 32 mm (Depending on the selected head)
- Number of spindles: 8, 9, 11 - Depending on the selected head (3 heads in a special configuration)
- Maximum drilling depth: 40 mm

HORIZONTAL REAR HEADS
- Number of heads: 4
- Spacing: 32 mm
- Number of spindles: 11
- Maximum drilling depth: 40-70 mm
