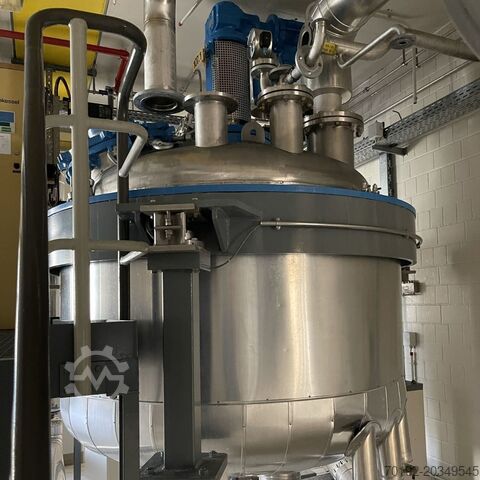

3860 लीटर V4A प्रेशर वेसल, बीम एगिटेटर सहित

8809

GENERAL INFORMATION
Equipment: Crane lugs
Design: Suspended
Notes: Support ring, Fe; manhole cover incomplete (see photos)
Rotation speed: 61 rpm
External diameter: 2,090 mm
Internal diameter: 1,800 mm
Explosion protection: Motor is explosion-proof (compliance with current ATEX directives under local conditions must be verified)
Total height: 3,050 mm
Heating/Cooling: available
Insulation: available
Power: 4 kW
Max. permitted operating temperature: 200 °C
Max. permitted operating overpressure: 16.0 bar
Max. overpressure: 3.2 bar
Agitator: Beam agitator
Stand/base type: Ring
Location: Bremen
Technical documentation: Drawing, various documents
Cylinder temperature control: Half-pipe coil
Codpfxjxqaxls Afaork
Nameplate:
Vacuum: 1.0 bar
Volume: 3,860 litres
Double jacket volume: 136.0 litres
Cylinder wall thickness: 6 mm
Product contact material: V4A 1.4435 (AISI316)
Condition: used
Last application: pharmaceutical chemistry

VESSEL
Max. permitted operating temperature: 200 °C

HEATING/COOLING JACKET
Max. permitted operating vacuum: 1.0 bar
Bottom temperature control: Half-pipe coil

INSULATION
Insulation jacket: riveted
Insulation jacket material: aluminium

EQUIPMENT

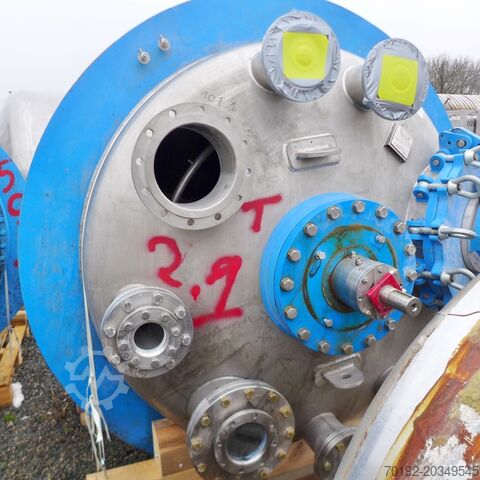

Manway / Dome: in upper head (DN 600)
Outlet: available

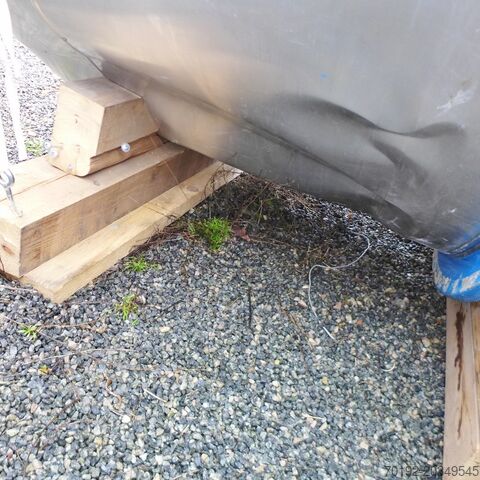

Note: Dents in insulation jacket, manway cover plated

MATERIAL SPECIFICATION
Temperature control system material: AISI 304 (V2A) 1.4306

AGITATOR 1
Voltage: 400/690 Volt

TECHNICAL DATA / DIMENSIONS
Bottom wall thickness: 5.17 mm
Agitator arrangement: centrally positioned in upper head

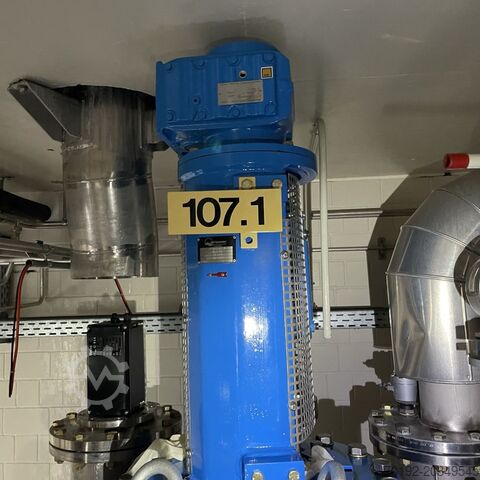

Agitator equipment: Gearbox housing slightly damaged in one area (see photos)
Upper head wall thickness: 8.14 mm
