3डी समन्वय मापने की मशीन

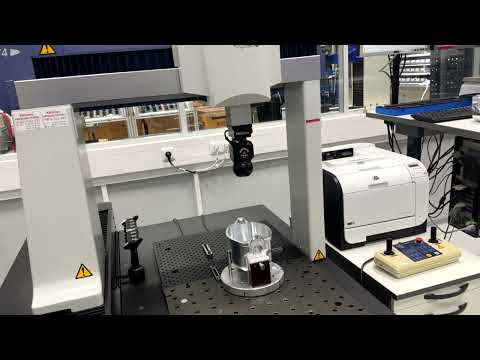

MITUTOYO Crysta-ApexC 574

Technical details:

measuring range X-axis: 505 mm
measuring range Y-axis: 705 mm
measuring range Z-axis: 405 mm
table-size: 638 x 1160 mm
max. workpiece weight: 180 kg
workpiece height max.: 540 mm
Passage height: 630 mm
distance between columns: 680 mm
Lrjdpeu N Atkofx Ai Nol
table height above floor: 745 mm
compressed air: 0,4 MPa
Air consumption: 100 l/min.
voltage: 100, 120, 220 oder 240 VAC / 50/60 V / Hz
total power requirement: 700 Watt
dimension machine xH: 1,46 x 1,08 x 2,20 m

CNC 3D coordinate measuring machine

Measuring system/position control: CMMC-J type, optoelectronic glass scales and speed control via pulse generator
Operating modes: CNC operation and/or joystick operation
Measuring software: MCOSMOS v. 3.5.R3
PC system: Windows 7, 16 GB RAM
New 2022 swivel head installed.
Renishaw PH10T+ motor. Rotating/tilting head
Renishaw PH10-3 PLUS touch probe; Renishow hand-held control unit and Renishow PH10-T Plus measuring system
Renishaw interchangeable system/probe magazine SCR200 for 6 probes
Granite measuring table
Annual maintenance carried out by Mitutoyo until 2023.
Some accessories:
such as TP200 probe system, various measuring tips (made of carbon) and holders as well as extensions, calibration ball, 3-jaw chuck, vice

*
