8 सिरों वाली चार-पक्षीय प्लानर

WEINIG Hydromat 22 AL z podajnikiem

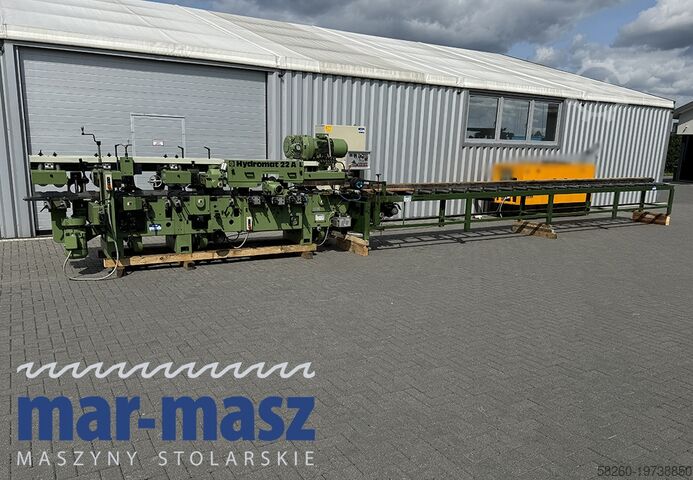

Four-Sided Planer WEINIG HYDROMAT 22 AL

- Maximum working width: 220 mm
- Maximum working height: 130 mm

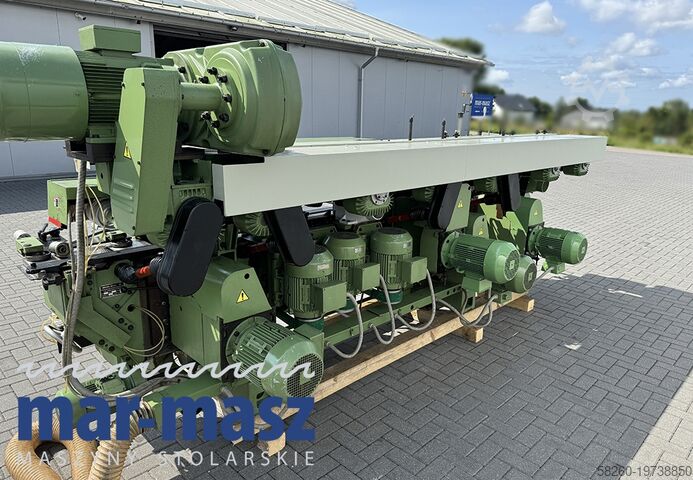

- 8 spindles:
1) Bottom horizontal, 220 mm, 5.5 kW
2) Right vertical, 130 mm, 7.5 kW
3) Left vertical, 130 mm, 7.5 kW
4) Right vertical, 130 mm, 5.5 kW
5) Top horizontal, 220 mm, 11 kW (spindle with electric height adjustment)
6) Bottom horizontal, 220 mm, 5.5 kW
7) Bottom horizontal, 220 mm, 5.5 kW (spindle with support and Jointer system for cutterhead sharpening)
8) Universal, 220 mm, 360° adjustable, 7.5 kW
- All spindles adjustable vertically and horizontally
- Spindle diameter: 40 mm

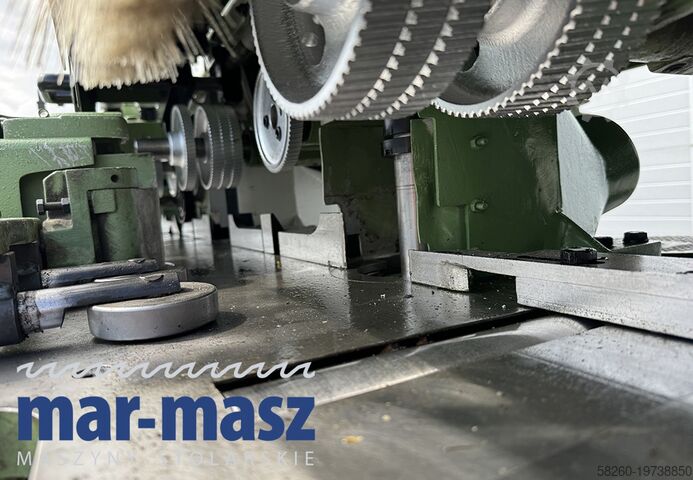

Feed system from above:
- 6 double-toothed powered feed rollers + 1 single roller
- 3 double smooth rubber outfeed rollers + 3 single rollers
- Length counter

Feed system from below:
- Powered toothed infeed roller, swiveling in the lower table
- 3 smooth metal feed rollers
- Feed via Cardan shafts
- Pneumatically pressed rollers
- Infinitely variable feed speed + 2 speed ranges: 10–60 m/min
- Feed motor: 10 kW
- Electric adjustment of planing thickness
- Lifting motor for main assembly: 0.75 kW
- Centralized table lubrication

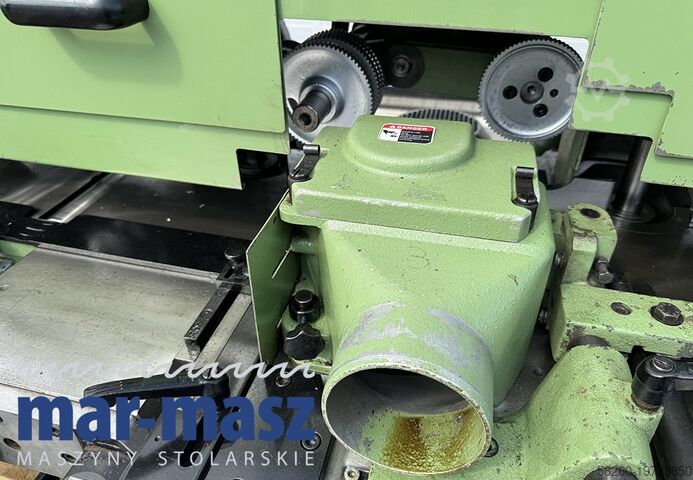

- Extraction port diameters: 5 x 140 mm, 3 x 120 mm
- Machine dimensions (LxWxH): 4680 x 1780 x 1850 mm
- Control cabinet dimensions (on pallet): 1020 x 1000 x 2230 mm
- Weight: approx. 5000 kg

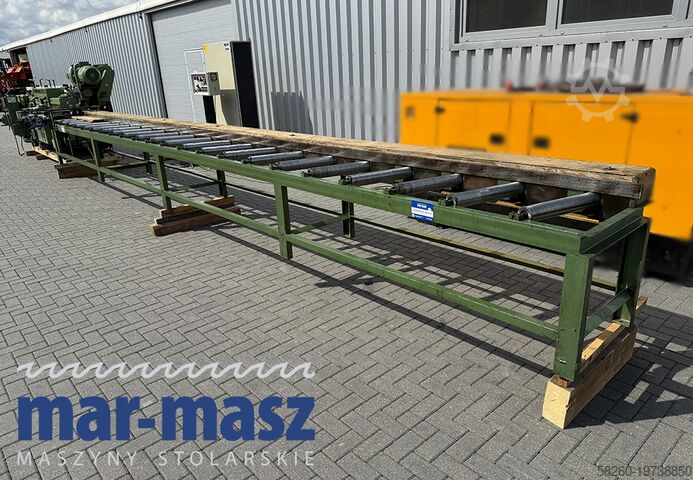

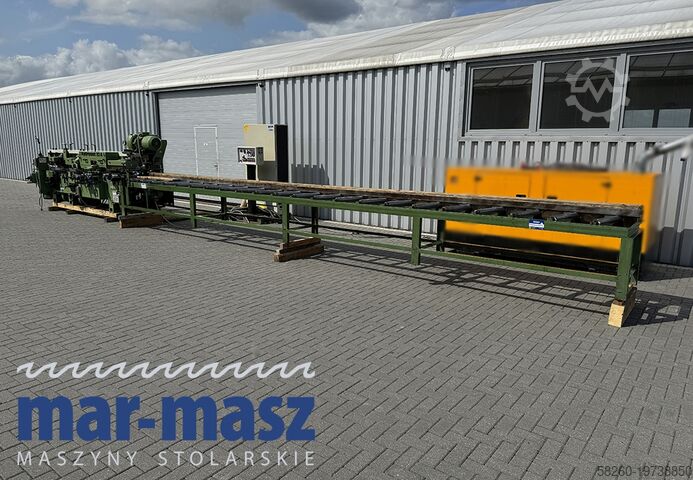

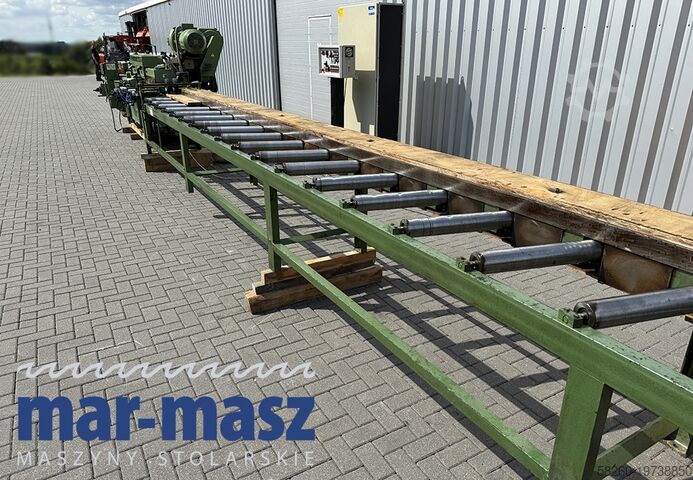

Feeder with center guide:
- Roller width: 450 mm
- Infeed: 1 powered toothed roller
- 22 smooth powered rollers
- Adjustable top pressure
Crjdpfx Afsw Ipicszsh
- Feeder length: 9020 mm
- Infinitely variable feed speed: 10–60 m/min
- Motor: 0.75 kW
- Dimensions (LxWxH): 9020 x 790 x 1150 mm

Net price: 180,000 PLN
Net price: 42,350 EUR (based on exchange rate of 4.25 EUR)
(Prices may vary with significant exchange rate fluctuations)
