MAN TGS 26.400 6x4 Krankipper Fassi/SOFORT VERFÜGBAR

Internal reference for customer inquiries: 1693/IMMEDIATELY AVAILABLE
----MAN TGS 26.400 6x4 Three-Way Tipper with FASSI F195A.2.24 E-DYNAMIC Loader Crane

Loader Crane:
* FASSI F195A.2.24 e-dynamic
* Lifting moment: 162 kNm (16.51 mt)
* Hydraulic four-stage extension, 12.7 m
* e-dynamic hose system for 2 auxiliary devices
* Slewing range: 400°
* Double knuckle boom system with PROLINK (overbendable knuckle up to 15°)
* Electronic overload protection with FX 500
* FASSI stability control FSC incl. LMB II

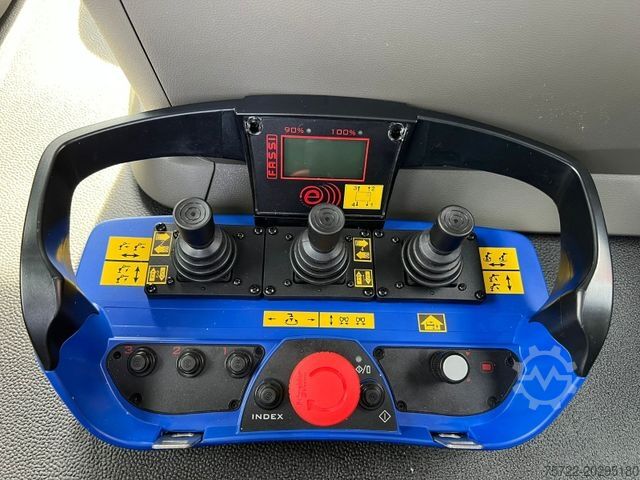

* Fassi RCS remote control maxi – 6 functions with 3 joysticks (2-2-2)
* Special outrigger system, hydraulic extension up to 6.64 m incl. FSC
* Outriggers can be operated via remote control
* FL-System (Full Lift) switchable high-speed valve for extensions
* LED work lights

Vehicle:
* MAN D1556 LF17 diesel engine, 294 kW (400 HP) output, 1,800 Nm torque, Euro 6e
* MAN TipMatic 12.26 OD automatic transmission
* MAN TipMatic driving modes: Performance, Efficiency, and Offroad, up to 70,000 kg
* 6x4 drive
Gkjdpfxoxnnupe Ab Nec
* Leaf/air suspension
* Differential locks on driven rear axles
* Main wheelbase 3,600 mm, wheelbase between rear axles 1,400 mm
* 310 l fuel tank capacity, 60 l AdBlue tank capacity
* Full brake assist
* MAN EVBec high-performance engine brake, adjustable
* Disc brakes on front axle, drum brakes on rear axles
* RINGFEDER tow hitch type 4040/G150A

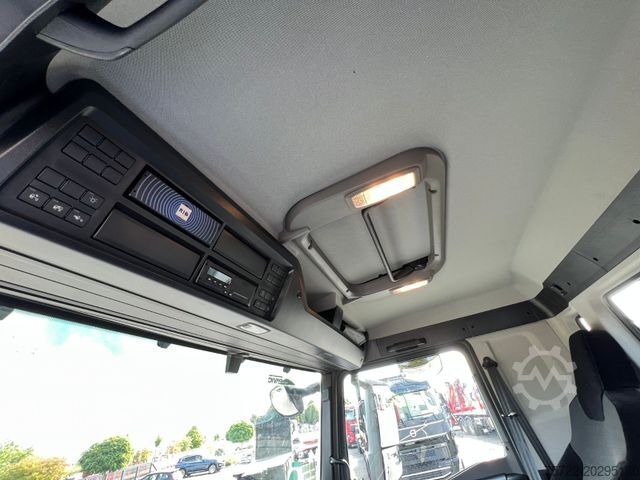

* NN cab: the practical choice (narrow, mid-length, standard height)
* Mechanical lifting roof
* Air-suspended driver comfort seat with lumbar support, shoulder adjustment, and seat heating
* MAN EasyControl panel, 4 functions, can be operated from outside with door open
* Electric interior sunblind for windscreen
* Refrigerator
* MAN SmartSelect infotainment control with touchpad and direct access buttons
* MAN Mediasystem Navigation Advanced 7-inch
* MAN Soundsystem Advanced
* Navigation maps for Europe and Russia
* Online traffic for navigation feature
* Standard drive system warranty extension for 3rd year of operation up to 450,000 km; see maintenance record for conditions

Superstructure:

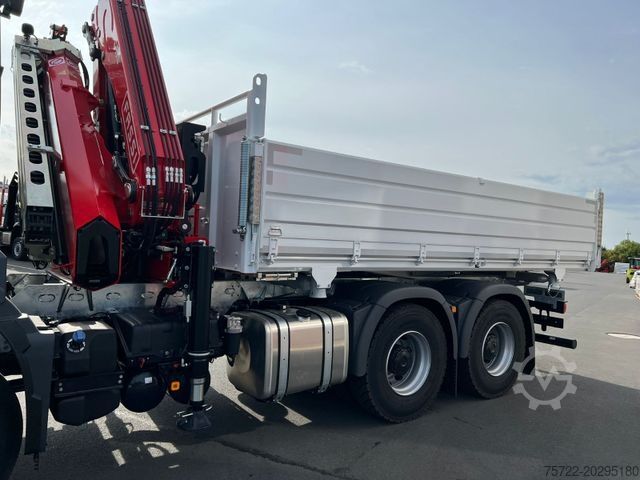

Three-way tipper body with FASSI F195A.2.24 E-DYNAMIC crane mounted directly behind the cab (crane with premium specification: radio remote control, hydraulic outriggers with remote operation, work lights, etc.)

Flatbed:
* Dimensions LxWxH: 5,200 mm x 2,420 mm x 800 mm
* (Alternative available: loading bay length 4,800 mm x 2,420 mm x 800 mm)
* Front wall: 1,000 mm high

Subframe:

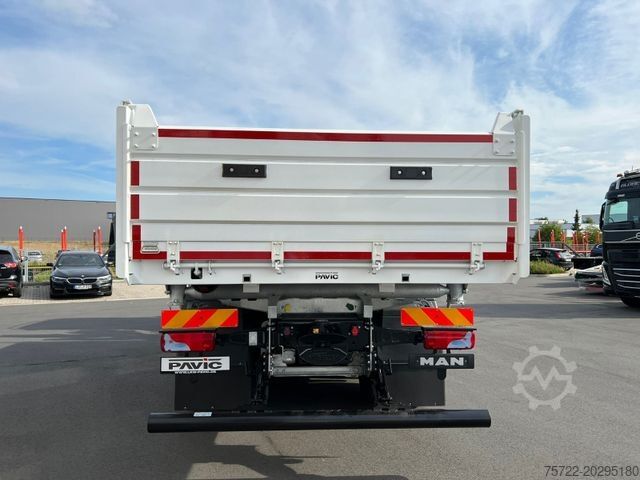

Robust steel welded construction, two longitudinal beams with cross members to support the 5 mm thick tipper profile and the 4 mm floor plate made of Hardox or Naxtra. Fixed 1,000 mm high steel front wall, with 2 round lashing rings inside and one on each side halfway up. Fixed corner stanchions with bottom-mounted locks. Rear and side walls (one-piece along the entire length) made of aluminium hollow sections, side walls foldable and pendulum-mounted with tailgate lifting aid. Rear tailgate also foldable and pendulum-mounted, with central locking integrated into the tipper profile. Floor plate made of 4 mm Hardox or Naxtra, neatly welded to the tipper profile and the longitudinal and cross beams. Press beam and tipping arms recessed and reinforced in the longitudinal beams. Lashing points (4 per side) evenly distributed externally along the tipper floor. Steel construction in St 52-3 quality. All steel parts sandblasted, superstructure parts painted or powder-coated in RAL 9016 (white) single-color.
