MAN TGS 26.480/520 6x2-4BL LADEKRAN FASSI/ PALFINGER

Internal reference number for customer inquiries: 5-073----! ! ! AVAILABLE IMMEDIATELY ! ! !

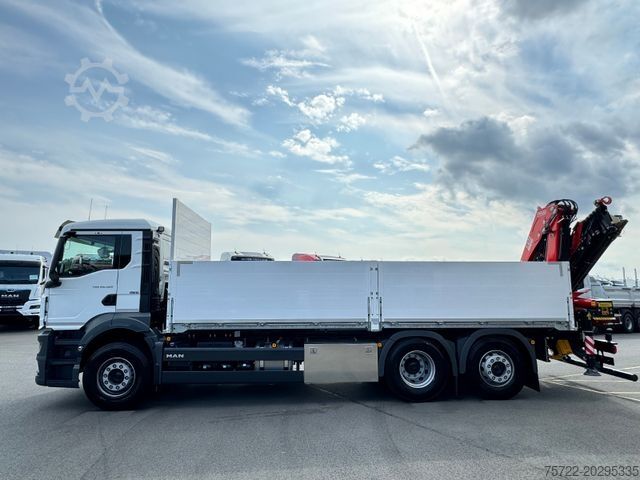

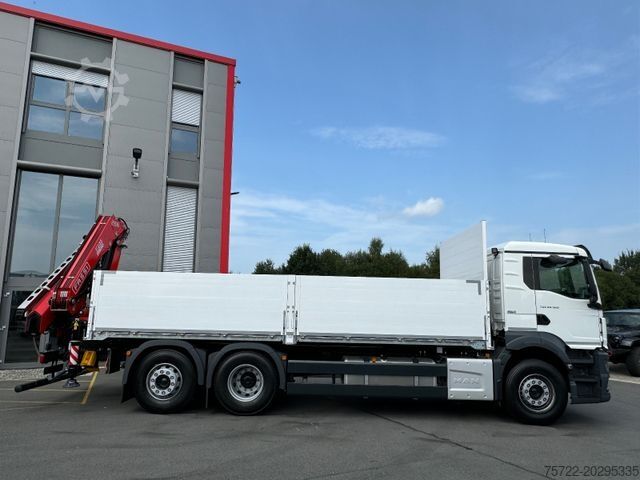

MAN TGS 26.480 BUILDING MATERIAL TRUCK WITH REAR-MOUNTED LOADER CRANE BY FASSI OR PALFINGER
Optionally also available with 520 HP in stock!

Vehicle:
Flatbed with crane
* MAN 02676 LFAI diesel engine, 480 HP output, 2,400 Nm torque, Euro 6e
* MAN TipMatic 12.26 DD automatic transmission with Retarder 35
* Eco retarder, speed-dependent, adjustable, energy-efficient
* MAN EVBec high-performance engine brake, adjustable
* 6x2-4 drive
* Leaf/air suspension (BL)
* 4,800 mm main wheelbase, 1,350 mm wheelbase between rear and trailing axle
* 590 l fuel tank, 60 l AdBlue tank
* Steerable and liftable trailing axle
* RINGFEDER Type 4040/G150B trailer coupling
* NN cab: practical (narrow, medium-length, normal height)
* Refrigerator

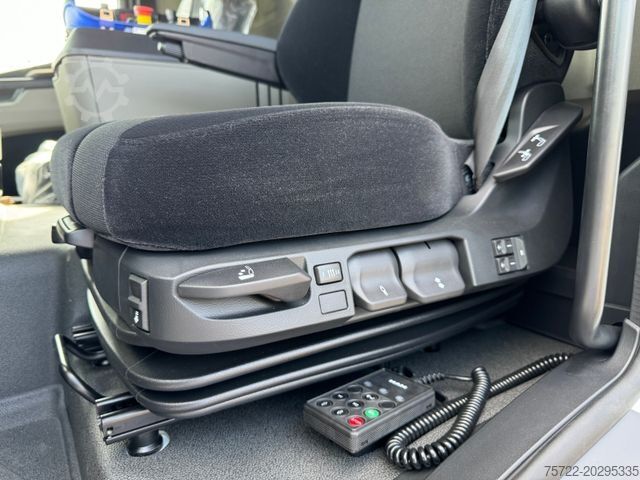

* Driver comfort seat, air-suspended, with lumbar support and shoulder adjustment
* Electrically operated glass sunroof
* Electric sunblind for front windscreen, internal
* LED lighting
* MAN EasyControl control panel, 2 functions, operable from the outside when door is open

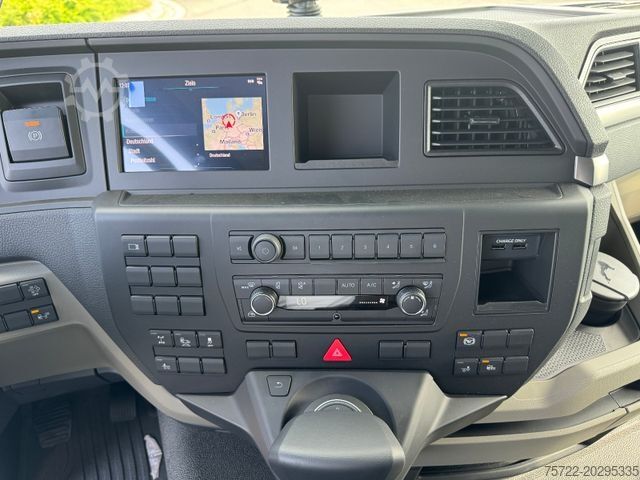

* MAN Media System Navigation Advanced 7-inch
* MAN Sound System Advanced
* Smartphone integration
* MAN SmartSelect infotainment control with touchpad and direct-entry buttons
* Lane departure warning system (LDW)
* MAN AttentionGuard fatigue warning system
* Emergency braking assistant (EBA)
* Standard driveline warranty extension for third operating year up to 450,000 km; see maintenance log for conditions
* ... and much more

Body:

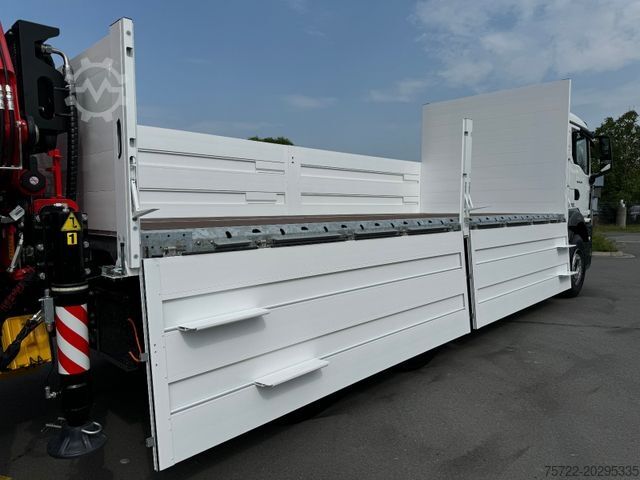

Flatbed: Dimensions 6600x2480x1000 mm, drop sides split 1x (2 flaps) per side, with drop side relief
* The floor plate is standard made from bonded Finnish multiplex 30 mm thick and screwed to the 45° perforated outer frame and cross members. The edges are sealed to prevent moisture ingress.
* Central lashing rail recessed in longitudinal direction
* 4 work spotlights
* Toolbox

PK 22002-EH ? PALFINGER HIGH PERFORMANCE TRUCK-MOUNTED LOADER CRANE

- Lifting moment: 205.0 kNm (20.9 mt)
- Classification HC1 HD4/B3 according to EN12999
- Fast extension system with oil return and internal oil passage
- Double knuckle boom with Power Link Plus 15°
- Slewing mechanism with slewing cylinders
- Slewing range 400°
- Electronic HPLS control unit (for two pressure ranges)
- Individual outrigger control with unlockable check valves on the support cylinders
- Spiral hose from base frame to main boom
- Spirit level at both control stations
- Available from stock with 4 and 6 extensions

or
Pgjdpfoxnnziex Aa Hsw

Fassi F235 loader crane:
* F235A.2. e-dynamic
* Lifting capacity at 12.7 m: 1,345 kg, or at 17.1 m: 740 kg
* Slewing range 400°
* Double knuckle boom system with PROLINK (overextendable knuckle by up to 15°)
* Electronic overload cut-off device with FX500
* Fassi RCS maxi radio remote – 6 functions with 3 joysticks (2-2-2)
* Emergency stop and visual alarm (at 90% and 100%), incl. adjustable digital slewing limitation
* FASSI stability control FSC incl. LMB II
* Control system for 2 additional functions with 2 hose guides / e-dynamic
* Available from stock with 4 and 6 extensions

Financing / hire-purchase as well as leasing / partial amortization leasing is available through our leasing partner.

For further questions, our sales team will be happy to assist you.

This is a non-binding offer. Subject to prior sale, errors and changes excepted.
